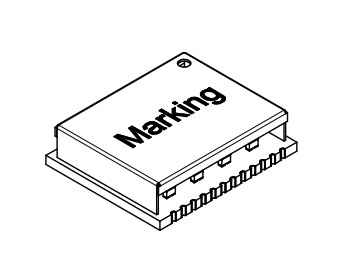

Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: RoHS, REACh,Halogen Free
Model Number: 749020310
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: $0.7-$1.5
Packaging Details: Tape & Reel
Delivery Time: 2 weeks
Payment Terms: TT, NET30/60/90 Days
Supply Ability: 500K/Month
Series: |
1000 Base-T SMT Transformer |
Turns Ratio: |
1:1 |
Data Rate: |
10/100/1000BASE-T |
PoE: |
Non-PoE |
Operating Temperature: |
-40 °C Up To +85 °C |
Isolation Test Voltage: |
1500V（RMS） |
Series: |
1000 Base-T SMT Transformer |
Turns Ratio: |
1:1 |
Data Rate: |
10/100/1000BASE-T |
PoE: |
Non-PoE |
Operating Temperature: |
-40 °C Up To +85 °C |
Isolation Test Voltage: |
1500V（RMS） |
| Property | Test Conditions | Value | Unit | Tolerance |
|---|---|---|---|---|
| Inductance (L) | 100 kHz / 100 mV @ 0 mA DC bias | 350 | µH | min. |
| DC Resistance 1 | 100 kHz / 100 mV (D side) | 4500 | mΩ | max. |
| DC Resistance 2 | 100 kHz / 100 mV (X side) | 6000 | mΩ | max. |
| Insertion Loss (IL) | 1–100 MHz | -1.1 | dB | max. |
| Return Loss (RL) | 1–30 MHz @ 100 Ω | -18 | dB | min. |
| Return Loss (RL) | 30–60 MHz @ 100 Ω | -12 | dB | min. |
| Return Loss (RL) | 60–80 MHz @ 100 Ω | -12 | dB | min. |
| Return Loss (RL) | 80–100 MHz @ 100 Ω | -10 | dB | min. |
| DCMR (Differential to Common Mode Rejection Ratio) | 1–60 MHz | -35 | dB | min. |
| DCMR | 60–100 MHz | -30 | dB | min. |
| Crosstalk (CT) | 1–100 MHz | -35 | dB | min. |
| Insulation Test Voltage | 1 min. | 1500 | V (RMS) | — |
