Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 749020100A
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.7-$2.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4KK/Month
P/N: |
749020100A |
Data Rate: |
10/100/1000BASE-T |
Mounting: |
Surface Mount |
Turns Ratio: |
1:1（±5%） |
Operating Temperature: |
-40°C ~ 105°C |
Inductance: |
350µH |
Samples: |
Support |
P/N: |
749020100A |
Data Rate: |
10/100/1000BASE-T |
Mounting: |
Surface Mount |
Turns Ratio: |
1:1（±5%） |
Operating Temperature: |
-40°C ~ 105°C |
Inductance: |
350µH |
Samples: |
Support |
| Manufacturer | LINK-PP |
| Part Number | 749020100A |
| Product Type | LAN Transformer |
| Data Rate | 10/100/1000BASE-T |
| PoE Support | Non-PoE |
| Inductance | 350 µH |
| Turns Ratio | 1:1 ±5% |
| Isolation Voltage | 1500 Vrms |
| Core Material | Ferrite |
| DC Resistance (Max) | 1.4 Ohms |
| Termination Style | SMT (Surface Mount Technology) |
| RoHS Compliant | Yes |
| Application | LAN / Ethernet |
| Operating Temperature Range | -40 °C to +105 °C |
| Length | 12.7 mm |
| Width | 9.5 mm |
| Height | 3.0 mm |

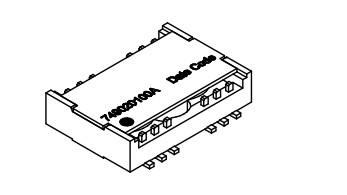

The 749020100A is a high-performance SMT LAN transformer designed for 10/100/1000BASE-T Ethernet networks, delivering reliable data transmission up to 1 Gbit/s. With an ultra-compact footprint (12.7mm × 9.5mm × 3.0mm) and RoHS compliance, this transformer is ideal for space-constrained industrial, IoT, and networking applications.
✔ Gigabit Ethernet Support – Fully compatible with 10/100/1000BASE-T standards for high-speed data transfer.
✔ Industrial Temperature Range – Operates from -40°C to +105°C, ensuring reliability in harsh environments.
✔ High Isolation Voltage – 1500 Vrms isolation enhances safety in high-voltage circuits.
✔ Low-Profile SMT Design – 3.0mm height enables easy integration into dense PCB layouts.
✔ Precision Winding – 1:1 ±5% turns ratio ensures signal integrity with minimal distortion.
