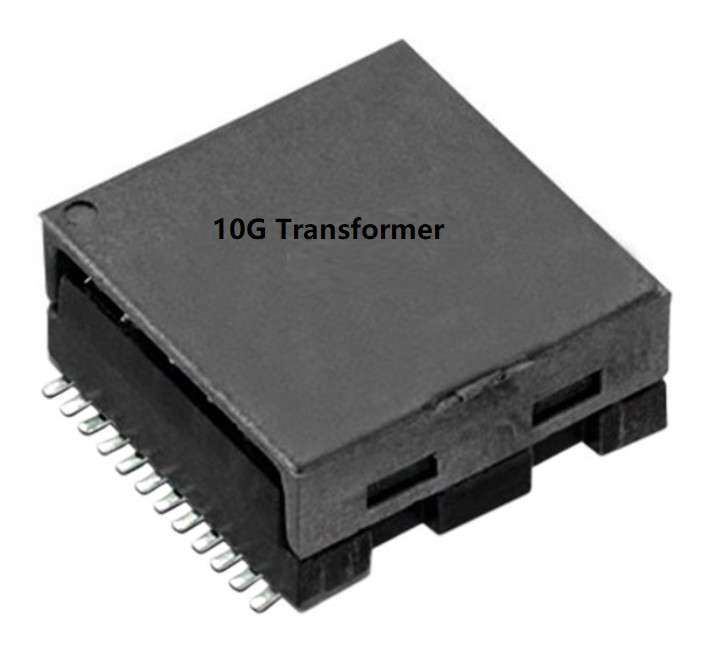

SMT Mount 749052014 LAN Magnetic Supports 10GBASE-T Ethernet

Name: SMT Mount 749052014 LAN Magnetic Supports 10GBASE-T Ethernet
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 749052014
Price: 1.06 USD
Availability: InStock

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: RoHS, REACH

Model Number: 749052014

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiable & Discount

Packaging Details: Packaging Quantity : 20 Packaging Method : Box & Tray, Tray

Delivery Time: Ships within 15 days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 6000K-PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    10G LAN Magnetic, 749052014, 10G Ethernet Magnetics


Transformer Type:	10 Gigabit Transformer	Part Number:	749052014
PoE:	Non-PoE	Turns Ratio:	1:1
Inductance (OCL):	180 µH	Isolation Voltage:	1500 V RMS
Mounting Type:	Surface Mount (SMT)	Dimensions (L × W × H):	17.73mm × 14.86mm × 7.24mm

Transformer Type:	10 Gigabit Transformer
Part Number:	749052014
PoE:	Non-PoE
Turns Ratio:	1:1
Inductance (OCL):	180 µH
Isolation Voltage:	1500 V RMS
Mounting Type:	Surface Mount (SMT)
Dimensions (L × W × H):	17.73mm × 14.86mm × 7.24mm

SMT Mount 749052014 LAN Magnetic Supports 10GBASE-T Ethernet

749052014 High Speed LAN Magnetics Overview:

The High Speed LAN Magnetics 749052014 is designed for 10GBASE-T Ethernet applications. Supporting data rates up to 10 Gbps, this SMT transformer offers a compact footprint (17.73 mm × 14.86 mm × 7.24 mm) and robust reliability with a 1500 V RMS isolation voltage. Featuring a 1:1 turns ratio and 180 µH minimum inductance, it ensures excellent signal integrity with low insertion loss and superior return loss across a wide frequency range. The 749052014 operates over an extended industrial temperature range from -40°C to +105°C and complies with IEEE 802.3an standards, making it ideal for use in EtherCAT and Profinet, as well as routers, switches, servers, IP cameras, and HDBaseT applications. Its fully automated manufacturing process guarantees consistent quality and performance, while its RoHS compliance ensures environmentally friendly design. The 749052014 is the optimal choice for engineers seeking reliable, high-speed magnetic solutions for next-generation networking equipment.
