7490140117C 10/100BASE-TX Discrete Magnetic Transformers 1 Port

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,REACH,ISO

Model Number: 7490140117C

Payment & Shipping Terms

Minimum Order Quantity: 50pcs

Price: $0.85

Packaging Details: Tray

Delivery Time: 1-2 Weeks

Payment Terms: TT, NET30/60/90 Days

Supply Ability: 5KK/Month

Get Best Price
Highlight:

7490140117C

,

SMT Ethernet Transformers

,

10/100BASE-TX Ethernet Magnetic

Part Status:
Active
Transformer Type:
LAN 10/100 Base-TX
Inductance:
350µH
Isolation Voltage:
2.5kV RMS
Termination Style:
Surface Mount
Operating Temperature:
-40°C ~ 105°C
Turns Ratio:
1:1
PoE Support:
Non-PoE
Part Status:
Active
Transformer Type:
LAN 10/100 Base-TX
Inductance:
350µH
Isolation Voltage:
2.5kV RMS
Termination Style:
Surface Mount
Operating Temperature:
-40°C ~ 105°C
Turns Ratio:
1:1
PoE Support:
Non-PoE

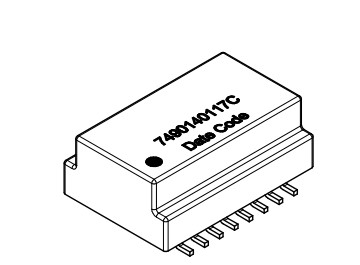

7490140117C 10/100BASE-TX Discrete Magnetic Transformers 1 Port

7490140117C 10/100Base-TX SMT Transformer - Product Overview

A SMT LAN transformer designed for 10/100Base-TX Ethernet applications. It provides signal isolation and impedance matching for reliable data transmission in networking equipment.


Key Specifications

Parameter Value Notes
Manufacturer LINK-PP 7490140117C
Type LAN Transformers (10/100Base-TX) 1-port configuration
Mounting Surface Mount (SMT) Tape & Reel (TR) packaging
Inductance 350 µH Primary inductance
Turns Ratio 1:1 Primary: Secondary
Isolation Voltage 2.5 kVrms Enhanced safety
Operating Temp. -40°C to +105°C Industrial range
Dimensions 12.70mm (L) × 8.80mm (W) × 5.70mm (H) Compact Design
Compliance IEEE 802.3u (10/100Base-TX) RoHS compliant

Applications

  • Ethernet switches/routers
  • Network interface cards (NICs)
  • Industrial communication devices
  • Embedded networking systems

7490140117C Datasheet
