Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 7490140122B
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month

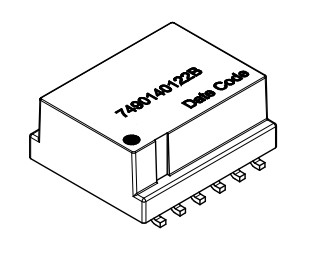

Part No.: |
7490140122B |
Transformer Type: |
SMT Transformer |
Turns Ratio: |
1:1 |
Data Rate: |
10/100 Base-T |
PINs: |
12 |
PoE: |
Non-PoE |
Length: |
17.1mm |
Width: |
14.75mm |
Height: |
8.4mm |
Part No.: |
7490140122B |
Transformer Type: |
SMT Transformer |
Turns Ratio: |
1:1 |
Data Rate: |
10/100 Base-T |
PINs: |
12 |
PoE: |
Non-PoE |
Length: |
17.1mm |
Width: |
14.75mm |
Height: |
8.4mm |
| Parameter | Specification |
|---|---|
| Part Number | 7490140122B |
| Series | LAN Magnetic |
| Data Rate | 10/100BASE-T |
| Turns Ratio (Primary: Secondary) | 1:1 ±2% |
| Inductance (OCL) | 350 µH |
| Insertion Loss | -2 dB max (1–100 MHz) |
| Return Loss |
-10 dB min (1–30 MHz), -7 dB min (30–60 MHz), -5 dB min (60–80 MHz), -4 dB min (80–100 MHz) |
| Common Mode Rejection Ratio (CMRR) |
-35 dB min (1–30 MHz), -30 dB min (30–60 MHz), -28 dB min (60–100 MHz) |
| Crosstalk (CT) |
-42 dB min (1–60 MHz), -40 dB min (60–100 MHz) |
| Isolation Voltage | 4500 V RMS |
| Clearance Distance | 7 mm min |
| Creepage Distance | 8.6 mm min |
| Operating Temperature Range | -40°C to +85°C |
| Mounting Type | Surface Mount (SMT) |
| Dimensions (L × W × H) | 17.1 mm × 14.75 mm × 8.4 mm |
| Compliance |
IEEE 802.3u, RoHS |
