Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 7490140123, 7490140124, 7490140125
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$2.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Data Rate: |
10/100 Base-T |
Ports: |
1 |
Mounting Style: |
SMT |
Turns Ratio: |
1:1 |
PoE: |
Non-PoE |
Inductance: |
350uH |
Isolation Voltage: |
1500V RMS |
Operating Temperature: |
-40 °C To +85 °C |
Data Rate: |
10/100 Base-T |
Ports: |
1 |
Mounting Style: |
SMT |
Turns Ratio: |
1:1 |
PoE: |
Non-PoE |
Inductance: |
350uH |
Isolation Voltage: |
1500V RMS |
Operating Temperature: |
-40 °C To +85 °C |

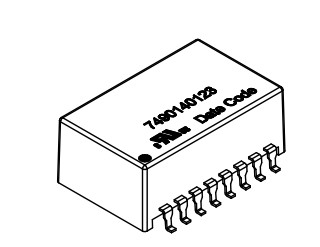

| Part Number | 7490140123 | 7490140124 | 7490140125 |
| Data Rata | 10/100 Base-T | 10/100 Base-T | 10/100 Base-T |
| Number of PINs | 16PINs | 12PINs | 24PINs |
| Turns Ratio | 1:1 (±2%) | 1:1 (±2%) | 1:1 (±2%) |
| Inductance | 350 µH | 350 µH | 350 µH |
| Isolation Voltage | 1500V (RMS, 1 min) | 1500V (RMS, 1 min) | 1500V (RMS, 1 min) |
| Insertion Loss | -1.4 dB max (1–100 MHz) | -1.2 dB max (1–100 MHz) | -1.4 dB max (1–100 MHz) |
| Return Loss |
-14 dB min (1–30 MHz), -9 dB min (30–60 MHz), -8 dB min (60–80 MHz), -7 dB min (80–100 MHz) |
-16 dB min (1–30 MHz), -14 dB min (30–60 MHz), -9 dB min (60–80 MHz), -8 dB min (80–100 MHz) |
-14 dB min (1–30 MHz), -9 dB min (30–60 MHz), -8 dB min (60–80 MHz), -7 dB min (80–100 MHz) |
| Common Mode Rejection Ratio (CMRR) |
-20 dB min (1–30 MHz), -18 dB min (30–60 MHz), -15 dB min (60–100 MHz) |
|
-20 dB min (1–30 MHz), -18 dB min (30–60 MHz), -15 dB min (60–100 MHz) |
| Differential to Common Mode Rejection Ratio (DCMR) |
-30 dB min (1–30 MHz), -25 dB min (30–60 MHz), -20 dB min (60–100 MHz) |
-35 dB min (1–30 MHz), -32 dB min (30–60 MHz), -30 dB min (60–100 MHz) |
-30 dB min (1–30 MHz), -25 dB min (30–60 MHz), -20 dB min (60–100 MHz) |
| Crosstalk (CT) |
-40 dB min (1–60 MHz), -35 dB min (60–100 MHz) |
-33 dB min (1–60 MHz), -30 dB min (60–100 MHz) |
-40 dB min (1–60 MHz), -35 dB min (60–100 MHz) |
| Mounting Type | SMT | SMT | SMT |
| Operating Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| DC Resistance (Max) | 500mΩ (100 kHz / 100 mV (Pins 9-16) | 1300mΩ (100 kHz / 100 mV (Pins 7-12) | 500mΩ (100 kHz / 100 mV (Pins 13-24) |
| Dimensions (L×W×H) | 24.28 × 15.1 × 11.0 mm | 17.1 × 14.75 × 8.65 mm | 18.25 × 15.59 × 10.02 mm |
| Clearance distance | 2.5 mm | 2.5 mm | 2.5 mm |
| Creepage distance | 4 mm | 4 mm | 4 mm |
| Ports | 1 | 1 | 1 |
