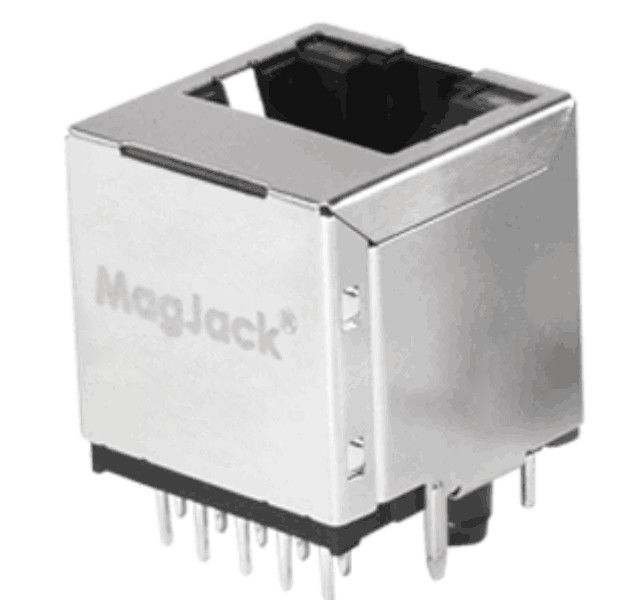

1-1840498-3 Vertical RJ45 MagJack ICM For 10/100Base-T Ethernet

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: RoHS Compliant

Model Number: 1-1840498-3

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: $0.09-$2.0

Packaging Details: T&R

Delivery Time: 3-5 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5KK/Month

Get Best Price
Highlight:

Vertical ICM

,

1-1840498-3

,

100Base-T Integrated Connector Module

Number Of Ports:
1X1
Series:
Vertical Port Configuration
Part Number:
1-1840498-3
Indicators:
With LED
EMI:
With EMI Tabs
Temperature Range:
-40°C To +85°C
Number Of Ports:
1X1
Series:
Vertical Port Configuration
Part Number:
1-1840498-3
Indicators:
With LED
EMI:
With EMI Tabs
Temperature Range:
-40°C To +85°C
1-1840498-3 Vertical RJ45 MagJack ICM For 10/100Base-T Ethernet

Description of 1-1840498-3 10/100BASE-T MagJack



The 1-1840498-3 is a Vertical Mount series single-port RJ45 MagJack. It features Yellow/Green LED indicators and is designed for standard height applications. This model operates in an extended temperature range of -40°C to +85°C, making it suitable for industrial applications. It uses a through-hole mounting method and is RoHS compliant.



1-1840498-3 Drawing



1-1840498-3 Vertical RJ45 MagJack ICM For 10/100Base-T Ethernet 01-1840498-3 Vertical RJ45 MagJack ICM For 10/100Base-T Ethernet 1



Features of LINK-PP Vertical Mount RJ45 Connectors



1. Mounting Orientation: Vertical (Top Entry)
2. Port Configuration: Single Port (1x1)/ ,Multi Port (1XN/2XN)
3. Ethernet Standards Supported:

  • 10/100Base-T
  • 1000Base-T (1G)
  • 2.5GBase-T
  • 10GBase-T

4. Power over Ethernet (PoE):

  • PoE / PoE+ / PoE++ support
  • Suitable for applications requiring up to 60W or higher power delivery

5. LED Indicators:

  • Available options: Green, Yellow, Orange, Bi-color
  • Facilitate network status monitoring

6. Shielding:

  • Options with or without EMI shielding tabs
  • Enhanced protection against electromagnetic interference

7. Operating Temperature Range: 0°C to +70°C/-40°C to +85°C
8. Compliance:

  • IEEE 802.3 standards
  • RoHS, UL, CE, ISO9001:2015, ISO14001:2015 certifications
