Model Number: NE8FBV-C5-LED1-S
Payment & Shipping Terms
Minimum Order Quantity: Free Samples Available
Price: Negotiable
Packaging Details: Tray
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Gender: |
Female Jack |
Part Number: |
NE8FBV-C5-LED1-S |
PoE: |
Up To 100 W |
LED Light‑pipes: |
2 |
Mounting: |
Vertical PCB Layout |
Compliant: |
CAT5e |
Operating Range: |
–30 °C To +80 °C |
Latch Lock: |
Approve |
Gender: |
Female Jack |
Part Number: |
NE8FBV-C5-LED1-S |
PoE: |
Up To 100 W |
LED Light‑pipes: |
2 |
Mounting: |
Vertical PCB Layout |
Compliant: |
CAT5e |
Operating Range: |
–30 °C To +80 °C |
Latch Lock: |
Approve |

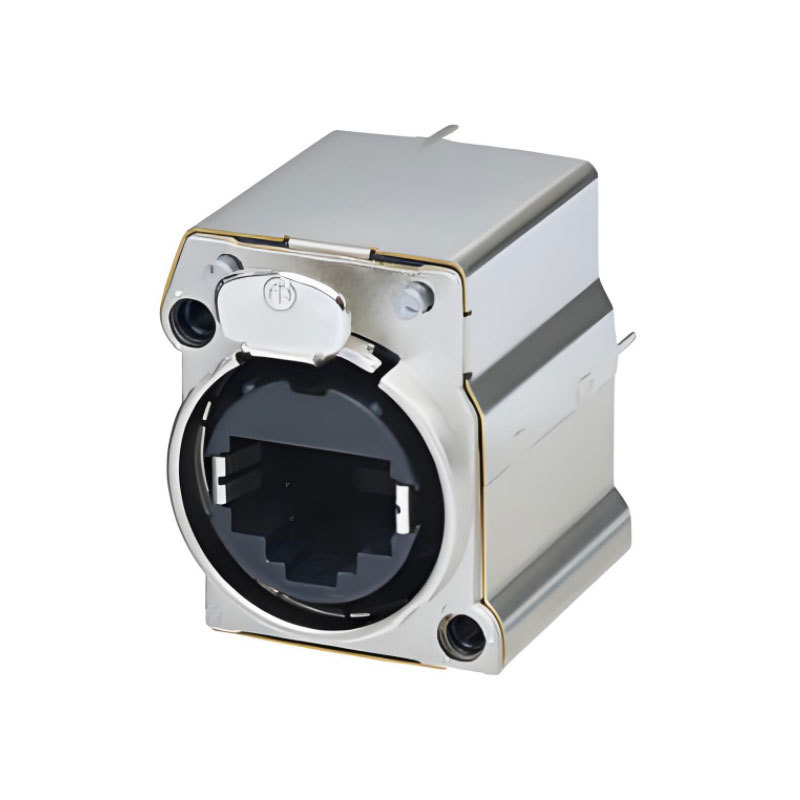

The NE8FBV-C5-LED1-S is a ruggedized Vertical PCB Mount RJ45 Receptacle designed specifically for professional audio, video, and lighting network applications. This female connector is engineered to meet industry-standard panel dimensions (such as XLR and 1/4" jack layouts), providing a compact footprint, enhanced durability, and secure locking.
This CAT5e-rated connector includes two integrated light pipes for SMD-LED indicators, a shielded construction, and a latch lock mechanism for secure mating. It supports PoE Type 4 Class 8 (100W) as per IEEE 802.3bt, making it ideal for high-power Ethernet applications.
Note: This connector is not compatible with CAT6 NE8MC6-MO and NKE6S* cable types.
| Category | Specification |
|---|---|
| Product Code | NE8FBV-C5-LED1-S |
| Connector Type | RJ45, Female |
| Mounting Type | Vertical PCB Mount (Rear Mounting) |
| Panel Cutout | B-Series (max. panel thickness: 3 mm) |
| Shielding | Yes |
| Light Pipes | 2x (for SMD LEDs) – Recommended LED height: 0.75 mm |
| PoE Support | IEEE 802.3bt Type 4 Class 8 (up to 100W) |
| Transmission | CAT5e compliant (ISO/IEC 11801 & TIA/EIA 568A/B) |
| Rated Voltage | ≤ 57 V |
| Rated Current | 1.5 A per contact |
| Contact Resistance | < 50 mΩ |
| Dielectric Strength | 1 kVdc |
| Insulation Resistance | > 0.5 GΩ |
| Frequency Range | 1–100 MHz |
| Insertion/Withdrawal Force | ≤ 20 N |
| Mating Cycles | > 1000 |
| Locking Mechanism | Latch Lock |
| Contact Plating | 0.2 µm Gold over Nickel |
| Contact Material | Bronze (CuSn8) |
| Shell Material | PBT G202G30 |
| Locking Element | Nickel-plated |
| Temperature Range | -30 °C to +80 °C |
| Flammability Rating | UL 94 V-0 |
| Solderability | IEC 68-2-20 compliant |
| Standards Compliance | ISO/IEC 11801-1:2017, IEC 60603-7-3, IEC 60512 series |
If you need more information about NE8FBV-C5-LED1-S, please do not hesitate to contact us.
◆ Pro Audio/Video Installations
◆ Stage and Lighting Control Networks
◆ Industrial Ethernet
◆ Media and Broadcast Systems
◆ High-power PoE Devices
