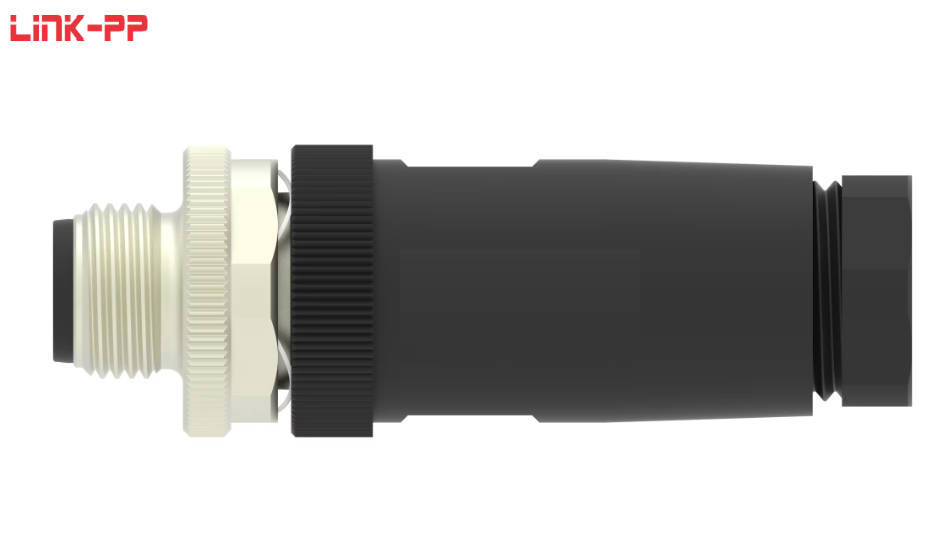

T4111002041-000 M12 Male Connector 4 Pin For Industrial Sensor

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: FCC,ROHS,REACH,CE

Model Number: T4111002041-000

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $3.00

Packaging Details: Bulk,1piece in a bag

Delivery Time: About 2 weeks

Payment Terms: TT, NET30/60/90 Days

Supply Ability: 5000K-PCS/Month

Get Best Price
Highlight:

T4111002041-000

,

M12 Circular Connectors

,

M12 4 Pin Male Connector

Part Number:
T4111002041-000
IP Water Sealing Level:
IP67
IP Dust Sealing Level:
6
Connector Mounting Type:
Cable Mount (Free-Hanging)
Operating Temperature Range:
-40 – 85 °C [ -40 – 185 °F ]
Number Of Positions:
4
Part Number:
T4111002041-000
IP Water Sealing Level:
IP67
IP Dust Sealing Level:
6
Connector Mounting Type:
Cable Mount (Free-Hanging)
Operating Temperature Range:
-40 – 85 °C [ -40 – 185 °F ]
Number Of Positions:
4
T4111002041-000 M12 Male Connector 4 Pin For Industrial Sensor

Key Features of T4111002041-000 M12 Circular Connector:

  • Connector Type: Circular Plug, Male
  • Number of Positions: 4
  • Coding: A-Coded — compatible with DeviceNet, IO-Link, and Profibus systems
  • Mounting Type: Cable Mount (Free-Hanging)
  • Termination Method: Screw — no special tools required, simplifies on-site wiring
  • Contact Plating: Gold — for enhanced conductivity and corrosion resistance
  • Shell Material: All-Plastic (Polyamide 66 GF25 / PBT, glass-filled)
  • Strain Relief: Integrated PG9 cable gland for secure cable retention
  • Field Installable: Supports re-wiring for quick maintenance or custom configurations
  • Ingress Protection: Rated IP67 — dust-tight and waterproof for reliable outdoor or industrial use





T4111002041-000 Technical Specifications:

The T4111002041-000 is a rugged and field-installable M12 circular connector plug designed for industrial applications that demand high reliability and protection. With 4 gold-plated contacts, IP67 ingress protection, and screw termination, this connector offers robust performance in harsh environments such as factory automation, sensors, and robotics.



Attribute Value

Type

M12 Male Connector 4 Pin
Part Number T4111002041-000
Connector Type Circular Connector, Plug, Male
Number of Positions 4
Shell Size M12
Mounting Type Cable Mount (Free-Hanging)
Termination Method Screw
Contact Plating Gold
Current Rating 4A
Voltage Rating 250V
Ingress Protection IP67 (Dust Tight, Waterproof)
Operating Temperature -40°C to +85°C
Coding Type A-Coded
Material Polyamide 66 GF25 or PBT (Glass Filled)
Strain Relief PG9 cable gland
