Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HB5606NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.08-$1.2
Packaging Details: T&R
Delivery Time: in Stock Ship Today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
RoHS Status: |
Fully ROHS Compliant |
Products Name: |
Ethernet Magnetic Transformers |
PoE: |
Without |
P/N: |
HB5606NL |
Standards Compliance: |
IEEE 802.3ab, IEEE 802.3u |
Dimension: |
28.10*11.10*11.00mm |
RoHS Status: |
Fully ROHS Compliant |
Products Name: |
Ethernet Magnetic Transformers |
PoE: |
Without |
P/N: |
HB5606NL |
Standards Compliance: |
IEEE 802.3ab, IEEE 802.3u |
Dimension: |
28.10*11.10*11.00mm |

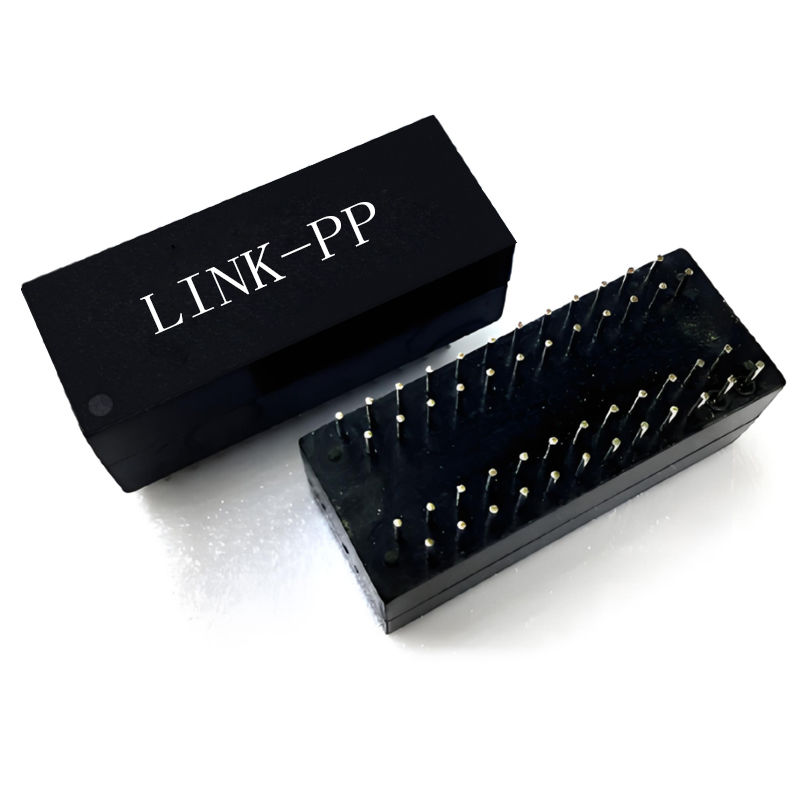

The HB5606NL is a dual-port LAN transformer module engineered for reliable 1000BASE-T Gigabit Ethernet applications. Featuring a 1CT:1CT turns ratio and robust 1500 VAC isolation, it ensures secure signal transmission and protection against electrical surges. Housed in a 48-pin through-hole (THT) package, the HB5606NL provides mechanical stability and ease of integration into networking equipment. With an operating temperature range of 0°C to +70°C and full RoHS compliance, this transformer is well-suited for commercial networking systems that demand consistent performance and long-term reliability.
| Parameter | Value |
|---|---|
| Product Category | LAN Transformer Module |
| Part Number | HB5606NL |
| Description | MOD, DUAL, 1GD, 1:1, 48Pin THD, NPB, TU |
| Data Rate | 1000BASE-T |
| Number of Channels / Ports | Dual |
| Isolation Voltage | 1500 VAC |
| Turns Ratio | 1CT:1CT |
| Mounting Style | Through-Hole (THT) |
| Temperature Range(Commercial Grade) | 0°C to +70°C |
| RoHS Compliance | Yes |
| Key Features | Meets IEEE802.3ab and IEEE802.af standards for 1000Base-T Ethernet connections |
A 1000BASE-T LAN transformer, also known as Gigabit Ethernet magnetics, is a passive component that provides signal isolation, impedance matching, and noise suppression between the Ethernet PHY and the RJ45 connector. It is essential for achieving stable 1000 Mbps Ethernet transmission.
Isolation voltage (typically 1500 VAC) ensures user safety and protects networking equipment from electrical surges. It also guarantees compliance with international Ethernet safety standards.
The turns ratio defines the winding balance of the transformer coils. A 1CT:1CT ratio is standard in Gigabit Ethernet designs, helping maintain impedance matching and low signal distortion.
No. Standard LAN transformers, like the HB5606NL, are designed for non-PoE applications. For devices requiring PoE or PoE+, specialized LAN magnetics with higher current handling are necessary.
1000BASE-T magnetics are offered in single-port, dual-port, or quad-port configurations. High-density designs, such as dual-port 48-pin THT modules, are widely used in compact networking equipment.
High-quality LAN discrete transformers must comply with IEEE 802.3u (Fast Ethernet) and IEEE 802.3ab (1000BASE-T Gigabit Ethernet) to ensure interoperability across different PHY chipsets and devices.
Yes. Industry-grade transformers are designed to be compatible with leading Gigabit PHYs, making them suitable for switches, routers, network interface cards (NICs), and industrial Ethernet systems.
Commercial-grade models typically operate in the 0°C to +70°C range, while industrial versions extend from –40°C to +85°C. Many have a Moisture Sensitivity Level (MSL) of 1, making them safe for standard storage and handling.
Most 1000BASE-T LAN transformers come in Through-Hole Technology (THT) packages for durability, though Surface-Mount Technology (SMT) options are available for automated production lines.
THT LAN magnetics are designed for hand or wave soldering, withstanding peak soldering temperatures of 260°C for up to 5 seconds without performance degradation.
They are widely applied in networking equipment (switches, routers, servers), security and surveillance devices (IP cameras, NVRs), and industrial control systems that require robust Gigabit Ethernet connectivity.
