Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJD0713DNL
Document: LPJD0713DNL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 54 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10KGS (1080 pcs) of each carton
Delivery Time: 1 day, ship today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Series: |
Vertical RJ45 Connector |
Part Number: |
LPJD0713DNL |
Ethernet: |
10/100/1000BASE-T |
LED: |
Without LED |
Operating Temperature: |
0°C To +70°C |
Orientation: |
Top-entry |
Height: |
16.6mm |
Length: |
21.59mm |
Width: |
16.00mm |
Files: |
Datasheet, PCB Footprint And 3D STEP Available |
Series: |
Vertical RJ45 Connector |
Part Number: |
LPJD0713DNL |
Ethernet: |
10/100/1000BASE-T |
LED: |
Without LED |
Operating Temperature: |
0°C To +70°C |
Orientation: |
Top-entry |
Height: |
16.6mm |
Length: |
21.59mm |
Width: |
16.00mm |
Files: |
Datasheet, PCB Footprint And 3D STEP Available |

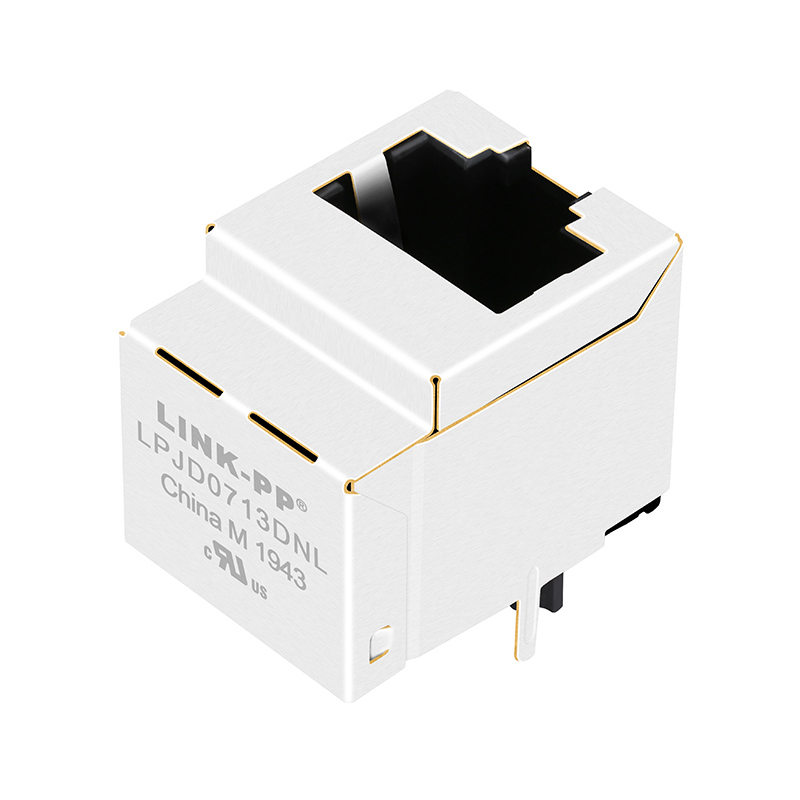

The LINK-PP LPJD0713DNL is a 1 ×1 vertical (top-entry) RJ45 connector with integrated magnetics, designed for 10/100/1000BASE-T Ethernet applications. Featuring a built-in transformer, excellent EMI performance, and no-LED design, it delivers cost-effective, high-reliability Ethernet connectivity for compact embedded and industrial systems.
Ideal for applications where board space, simplified design, and long-term reliability are priorities.
| Parameter | Description |
|---|---|
| Product Model | LPJD0713DNL |
| Connector Type | RJ45 w/ Integrated Magnetics |
| Port Configuration | 1×1 Single Port |
| Speed | 10/100/1000BASE-T |
| Transformer Ratio | 1CT:1CT |
| OCL | ≥ 350 µH @ 100kHz, 0.1V, 8mA |
| Isolation Voltage | 1500 Vrms |
| Mounting Style | Vertical / Top Entry |
| Termination | Through-Hole |
| Shielding | Metal shield |
| Contact Plating Options | 6µ" / 15µ" / 30µ" Gold |
| Operating Temperature | 0°C to +70°C |
| Housing Material | High-temperature thermoplastic |
| Compliance | RoHS, REACH, UL, ISO9001/14001 |
This Vertical RJ45 connector supports PHYs from:
Offers plug-and-play compatibility with major industry Ethernet controllers.
