Part Number: |
LPJD0718DNL |
Category: |
RJ45 Vertical Connector |
Application: |
Non-PoE Gigabit Ethernet |
HiPot: |
1500 Vrms |
Mount Type: |
Vertical (THT) |
Operating Temperature Range: |
0°C ~ 70°C |
Positions / Contacts: |
10P8C |
Latch Orientation: |
Up |
Shield EMI Tabs: |
Without |
Housing Material: |
Thermoplastic PBT + 30% Glass Fiber |
Contact Material: |
Phosphor Bronze |
UL94V-0: |
YES |
Pin Material: |
Brass C2680R-H, 0.35 Mm |
Shield Material: |
Copper Alloy Brass |
Contact Plating: |
Gold 6 µin Min |
Wave Solder Temp.: |
250°C ±5°C For 5 Sec |
Part Number: |
LPJD0718DNL |
Category: |
RJ45 Vertical Connector |
Application: |
Non-PoE Gigabit Ethernet |
HiPot: |
1500 Vrms |
Mount Type: |
Vertical (THT) |
Operating Temperature Range: |
0°C ~ 70°C |
Positions / Contacts: |
10P8C |
Latch Orientation: |
Up |
Shield EMI Tabs: |
Without |
Housing Material: |
Thermoplastic PBT + 30% Glass Fiber |
Contact Material: |
Phosphor Bronze |
UL94V-0: |
YES |
Pin Material: |
Brass C2680R-H, 0.35 Mm |
Shield Material: |
Copper Alloy Brass |
Contact Plating: |
Gold 6 µin Min |
Wave Solder Temp.: |
250°C ±5°C For 5 Sec |

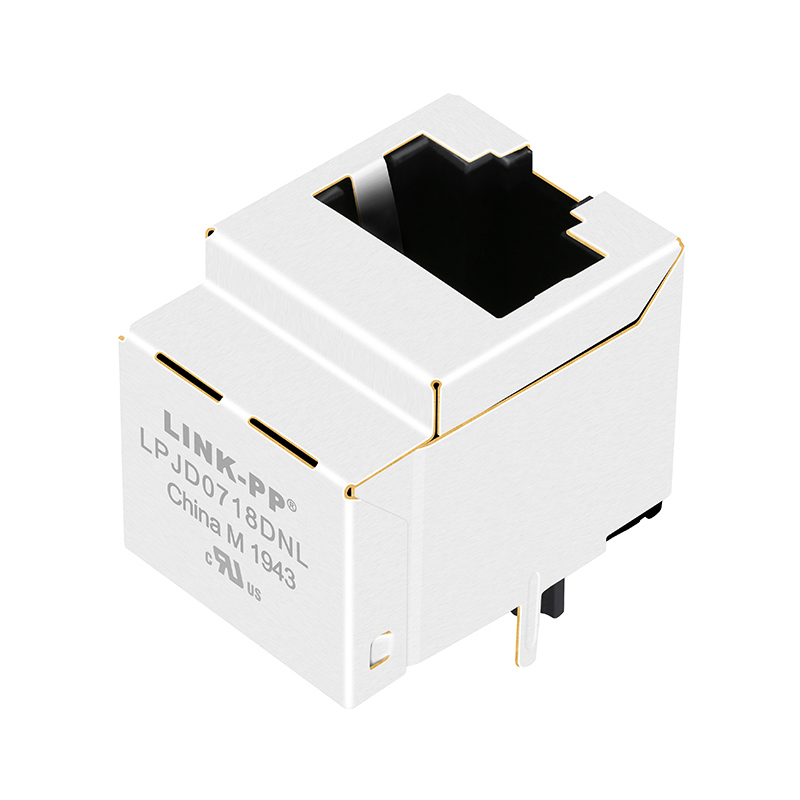

The LPJD0718DNL is a single-port 10/100/1000 Base-T (Gigabit Ethernet) RJ45 magnetic connector designed for vertical PCB mounting. It integrates a high-performance transformer module within the jack housing and supports non-PoE applications.
This model does not include LED indicators, making it ideal for compact or customized Ethernet designs where external status indication is not required.
The LPJD0718DNL provides excellent signal integrity, EMI suppression, and long-term reliability across Ethernet transmission environments, ensuring stable connectivity in high-speed data applications.
| Specification | Value | Condition |
|---|---|---|
| Turn Ratio (±2%) | 1CT:1CT | Primary: Secondary (TX/RX) |
| OCL Inductance (Min) | 350 µH | @100kHz, 0.1V, 8mA DC Bias |
| Insertion Loss (Max) | -1.0 dB | 1 - 100 MHz |
| Return Loss (Min) | -18 dB | 1 - 40 MHz |
| Return Loss (Min) | -14 dB | 60 MHz |
| Return Loss (Min) | -12 dB | 80 MHz |
| Return Loss (Min) | -10 dB | 100 MHz |
| Crosstalk (Min) | -30 dB | 1 - 100 MHz |
| CMRR (Min) | -30 dB | 1 - 100 MHz |
| HiPot Test | 1500 Vrms | -- |
| Operating Temperature Range | 0°C ~ 70°C | -- |
| Dimension | Inches | Millimeters (mm) |
|---|---|---|
| Height | 0.654" | 16.60 mm |
| Length | 0.850" | 21.59 mm |
| Width | 0.630" | 16.00 mm |
The LPJD0718DNL Vertical RJ45 Gigabit MagJack is widely used in networking and embedded communication equipment that requires high-speed Ethernet performance without PoE.
