LPJD4011DNL4 IR Reflow Vertical RJ45 Jack With 10/100Base-T Magnetics

LPJD4011DNL4 THR Vertical RJ45 Connector Overview

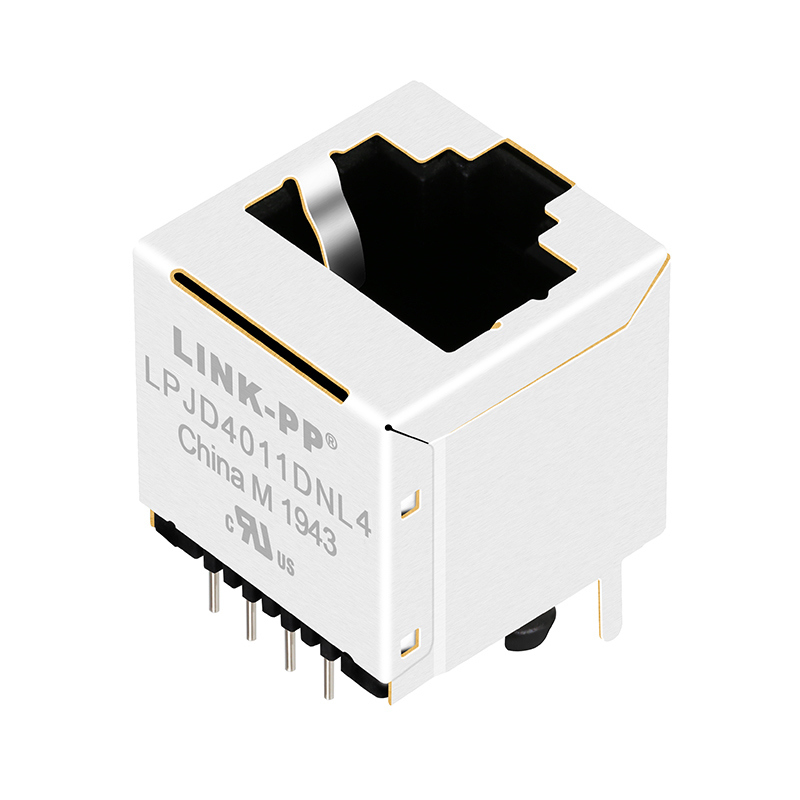

LPJD4011DNL4 is a vertical RJ45 connector developed by LINK-PP INT'L TECHNOLOGY CO., LIMITED, which is essentially positioned as a Through-Hole Reflow (THR) connector with 10/100 magnetic components. It is adapted to Ethernet scenarios, supporting 10/100 Base-T transmission rate, and adopts a 1x1 port design. The contact configuration is 8P8C (complying with the RJ45 Ethernet interface standard), and it is a non-PoE (Power over Ethernet) type. The port has 4 built-in magnetic cores, and the PCB mounting angle is a top-entry type, which can meet the interface requirements of conventional local area network (LAN) devices.

LPJD4011DNL4 Electrical Specifications

THR Reflow Specifications:

• Preheat Stage: Temperature range (TA-TB): 150-200°C; Time range (T1-T2): 60-180 seconds.
• Holding Temperature Stage: Holding temperature: 217°C; Holding time (TL): 60-150 seconds.
• Peak Temperature Stage: Maximum peak temperature (TP): 250 (+0/-5) °C; Maximum time at peak temperature (TP): 5 seconds.
• Additional Requirements: The maximum average heating rate is 3°C/s; the maximum average cooling rate is 6°C/s. The maximum time from 25°C to the product exiting the furnace is 6 minutes.

Mechanical & Material Characteristics

Material Composition

1. Housing: Made of thermoplastic material PA46 + 30% glass fiber (G.F.), complying with the UL94V-0 flammability rating, and featuring both mechanical strength and fire safety.
2. Contact: Made of phosphor bronze C5210R-EH with a thickness of 0.35 mm. The contact area is gold-plated, with a minimum gold plating thickness of 6 micro-inches, enhancing electrical conductivity and oxidation resistance.
3. Pins: Made of brass C2680R-H with a thickness of 0.35 mm, ensuring the rigidity and electrical conductivity of the pins.
4. Shield: Made of stainless steel SUS 304-1/2H with a thickness of 0.2 mm, which can effectively shield external electromagnetic interference (EMI).

Dimensions & Layout

Dimensional Tolerance: The dimensional tolerances for different precision requirements are ±0.30 mm, ±0.25 mm, and ±0.15 mm, respectively, with an angle tolerance of ±1°. The unit is uniformly mm, the drawing scale is 2/1, and there are 3 drawing sheets.

Recommended PCB Layout: The product provides a recommended PCB layout (Top View) to guide the design of the PCB board matching the connector, ensuring proper installation and signal transmission performance.
