Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: AGST5009B
Payment & Shipping Terms
Minimum Order Quantity: 400pcs
Price: $0.2-$0.9
Packaging Details: Tape & Reel
Delivery Time: Ships within 1-2 weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
AGST5009B |
Transformer Type: |
2.5GBASE-T Ethernet Transformer |
Turns Ratio: |
1CT : 1CT |
Isolation Voltage: |
1500 VAC |
Mounting Style: |
SMD (Surface Mount Device) |
Port Configuration: |
Single Port |
Operating Temperature: |
0 °C To +70 °C |
RoHS & Halogen-Free: |
Yes |
Part Number: |
AGST5009B |
Transformer Type: |
2.5GBASE-T Ethernet Transformer |
Turns Ratio: |
1CT : 1CT |
Isolation Voltage: |
1500 VAC |
Mounting Style: |
SMD (Surface Mount Device) |
Port Configuration: |
Single Port |
Operating Temperature: |
0 °C To +70 °C |
RoHS & Halogen-Free: |
Yes |
749020011A WE-LAN LAN Transformer for 1000Base-T SMT RJ45 applications, featuring 1500V isolation, 350µH inductance, improved CMRR, and –40°C to +85°C industrial temperature range. Ideal for industrial Ethernet, routers, switches, IP cameras, and IoT devices.

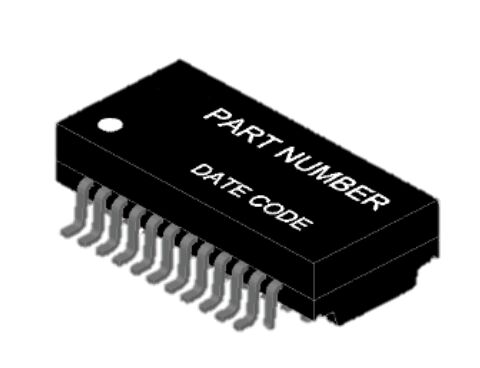

The AGST5009B 2.5G Magnetic Module is a single-port SMD Ethernet transformer module designed for 2.5GBASE-T (IEEE 802.3bz) applications. Featuring excellent signal integrity, low insertion loss, high isolation voltage, and reliable EMI suppression, AGST5009B is optimized for 2.5G commercial and industrial Ethernet switches, and high-volume consumer networking equipment.
With full PHY interoperability, RoHS & Halogen-Free compliance, and mass-production SMT compatibility, AGST5009B delivers a robust and cost-effective magnetic solution for next-generation multi-gigabit Ethernet designs.
| Item | Description |
|---|---|
| Part Number | AGST5009B |
| Product Type | 2.5G Magnetic Module |
| Speed | 2.5GBASE-T |
| Ports | Single |
| Mounting | SMD |
| Package | Tape & Reel |
| RoHS | Yes |
| Parameter | Test Conditions | Value | Unit |
|---|---|---|---|
| Media-Side Inductance | @100 kHz, 0.1 Vrms | 180 min | µH |
| Insertion Loss | 1–100 MHz | –0.5 max | dB |
| Insertion Loss | 125 MHz | –1.0 max | dB |
| Return Loss | 1–40 MHz | –20 min | dB |
| Return Loss | 40 < f ≤ 125 MHz | –(20 – 10 log10(f/40)) | dB |
| Crosstalk | 1–100 MHz | –30 min | dB |
| Isolation Voltage | 60 s | 1500 | VAC |
| Operating Temperature | — | 0 to +70 | °C |
AGST5009B is engineered to meet strict signal integrity and EMI performance requirements of IEEE 802.3bz, ensuring clean eye diagrams, low jitter, and stable 2.5G data transmission.
With high return loss and strong common-mode noise rejection, this magnetic module effectively reduces electromagnetic interference (EMI), making it ideal for dense PCB layouts and high-speed Ethernet systems.
AGST5009B is fully compatible with all major Ethernet PHY vendors, including:
Broadcom
Marvell
Realtek
TI
Microchip
Ensuring plug-and-play interoperability and simplified hardware validation.
RoHS compliant & Halogen Free
MSL 1 moisture sensitivity level
High-temperature reflow compatible (245°C)
13" Tape & Reel packaging for automated SMT assembly
1. J-STD-002: Solderability at 245°C Reflow Profile
2. J-STD-020: Moisture Sensitivity Level 1
3. J-STD-075: R7, 245°C Maximum Through Reflow
4. Header Material: DAP (Diallyl Phthalate), UL 94V-0 rated
5. Lead Frame: Copper Alloy
