KMS-1102NL 10/100BASE-TX SMD LAN Transformer 350uH 1CT:1CT

KMS-1102NL 10/100 Base-T SMD-16P LAN Transformer with 1CT:1CT turns ratio and 350uH OCL. RoHS compliant and ideal for Ethernet modules and industrial applications.

KMS-1102NL LAN Transformer Overview

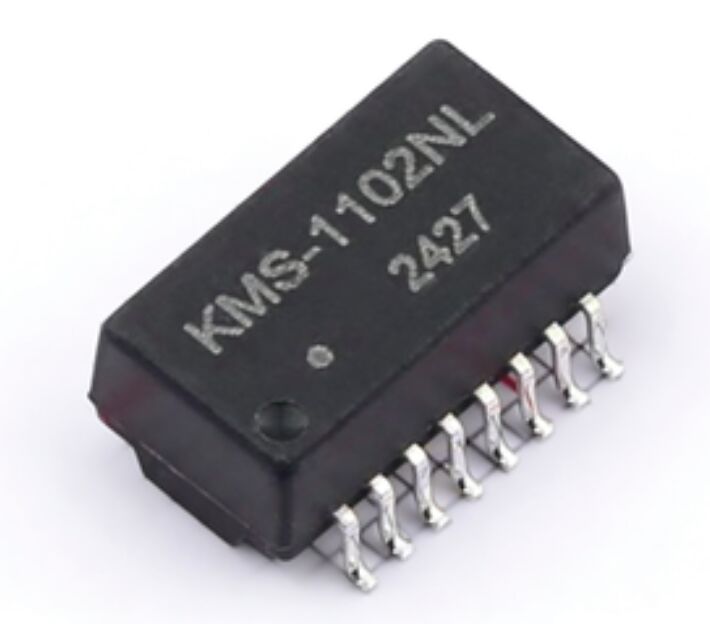

The KMS-1102NL is a high-performance 10/100 Base-T LAN Transformer, designed for reliable Ethernet connectivity in industrial and enterprise applications. Featuring a 1CT:1CT turns ratio, 350uH minimum OCL, and a compact SMD-16P (12.7×7mm) package, this transformer ensures stable signal integrity, low insertion loss, and excellent crosstalk isolation.

Ideal for: Ethernet interface modules, PoE network devices, and industrial network equipment.

Key Features & Benefits

• Standards Compliant: Fully compliant with IEEE 802.3af and ANSI X3.263, guaranteeing reliable Ethernet performance.
• Wide Temperature & Humidity Range: Operating from 0°C to +70°C, storage from -40°C to +85°C, with up to 90% RH, suitable for harsh environments.
• Eco-Friendly: RoHS compliant, ensuring environmentally safe materials.
• High Signal Quality: 1CT:1CT turns ratio, OCL ≥ 350uH, minimal insertion loss, and high CMRR for robust signal transmission.
• Easy SMT Assembly: SMD-16P package supports IR reflow soldering, facilitating automated PCB production.

Technical Specifications

KMS-1102NL Datasheet

10/100BASE-TX Transformer Module Applications

• Ethernet interface modules for networking devices
• Industrial automation and control systems
• Power over Ethernet (PoE) network devices
• PCB-mounted high-speed data transmission modules

Installation & Packaging Spcs of KMS-1102NL SMD LAN Transformer

• Package Size: SMD-16P, 12.7 × 7 mm
• Mounting Method: Surface Mount Technology (SMT)
• Soldering Compatibility: IR reflow compatible

Compliance & Certification

• RoHS Certified: Environmentally safe, lead-free materials

• IEEE 802.3af / ANSI X3.263 Standards Compliant: Ensures industry-standard performance

• Technical Datasheet Available: [PDF Support]

FAQs for KMS-1102NL SMD-16P Ethernet Magnetics

Q1: What network speeds does KMS-1102NL support?

A1: Supports 10/100 Mbps Ethernet applications.

Q2: Is KMS-1102NL PoE compatible?

A2: Yes, fully compatible with IEEE 802.3af PoE standards.

Q3: What are the operating temperature and humidity ranges?

A3: 0°C to +70°C, operating humidity up to 90% RH; storage temperature -40°C to +85°C.

KMS-1102NL Purchase & Support

• Request a Quote: [Contact Sales]
• Drawing / 3D Provided
• Related Products: [View other LAN Transformers]
