Product Details
Place of Origin: Guangdong, Huizhou
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: A00-108-222-450
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: $0.05-$0.8
Packaging Details: T&R
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: T/T, L/C, CAD / D/P, OA
Supply Ability: 5KK/Month
Part Number: |
A00-108-222-450 |
Product Type: |
RJ45 Modular Jack |
Gender: |
Jack (Female) |
Number Of Port: |
1x1 Single Port |
Contacts: |
8P8C |
Shielding: |
Shielded |
Performance Category: |
Cat 5 |
Tab Direction: |
Top Entry |
Operating Temperature: |
-40 °C Up To +85 °C |
Contact Plating: |
Gold |
Part Number: |
A00-108-222-450 |
Product Type: |
RJ45 Modular Jack |
Gender: |
Jack (Female) |
Number Of Port: |
1x1 Single Port |
Contacts: |
8P8C |
Shielding: |
Shielded |
Performance Category: |
Cat 5 |
Tab Direction: |
Top Entry |
Operating Temperature: |
-40 °C Up To +85 °C |
Contact Plating: |
Gold |

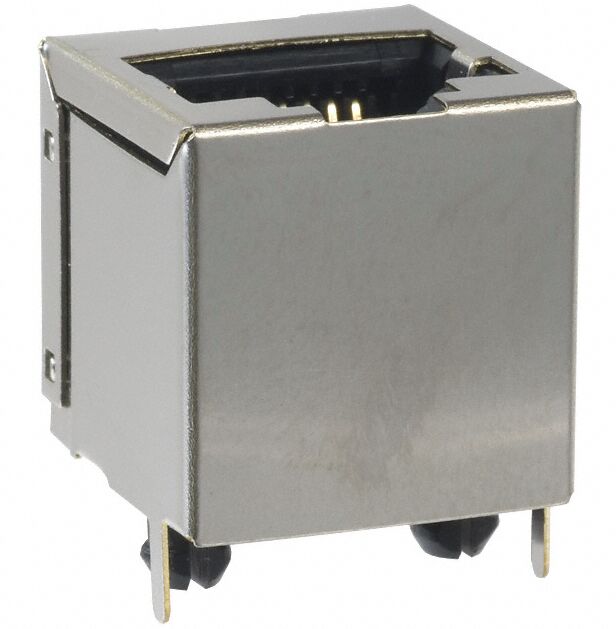

A00-108-222-450 is a shielded RJ45 top entry P.C.B modular jack with 8P8C contacts, 1x1 port, through-hole solder mounting, Cat 5 performance, and 10/100Base-T application support.
The A00-108-222-450 Shielded RJ45 Top Entry P.C.B Modular Jack is a female RJ45 modular connector designed for reliable PCB-mounted Ethernet connectivity. This part belongs to the EDAC A00 series and is built as a 1x1, 8P8C, shielded modular jack with top-entry tab direction, vertical mounting style, and through-hole solder termination. It is suited for 10/100 Base-T network applications and other Cat 5 designs that require a compact and durable board interface.
If you are searching for an A00-108-222-450 RJ45 connector or a shielded RJ45 top entry PCB modular jack, this part offers the key features most design teams need: standard RJ45 / USOC compatibility, 8-position / 8-contact (8P8C) interface, shielded construction, and THT solder mounting for stable board assembly. The datasheet also lists Cat 5 performance, making it a practical choice for Ethernet ports in industrial, networking, and embedded systems.
| Item | Specification |
|---|---|
| Part Number | A00-108-222-450 |
| Product Series | A00 |
| Product Type | Modular Jack |
| Brand | EDAC |
| Gender | Jack (Female) |
| USOC Code | RJ45 |
| Configuration | 1x1 |
| Number of Positions / Contacts | 8P8C |
| Number of Ports | 1 Port |
| Shielding | Shielded |
| Performance Category | Cat 5 |
| Mounting Style | Through Hole |
| Mounting Angle | Vertical |
| Termination Style | Solder |
| Tab Direction | Top Entry |
| Current Rating | 1.5 A |
| Voltage Rating | 125 VAC |
| Operating Temperature | -40°C to +80°C |
| Color | Black |
| Application | 10/100 Base-T |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| RX/TX Turns Ratio | 1CT:1CT |
The A00-108-222-450 is a strong fit for:
If your project needs a shielded RJ45 top entry P.C.B modular jack with 8P8C contacts, 1x1 port, through-hole solder mounting, Cat 5 performance, and 10/100 Base-T support, the A00-108-222-450 is a practical and search-relevant choice for PCB Ethernet connectivity.
The A00-108-222-450 is a shielded RJ45 top entry P.C.B modular jack in the EDAC A00 series, designed as a 1x1, 8P8C, through-hole solder Ethernet connector.
It uses through-hole mounting with a vertical mounting angle and solder termination.
Yes. The A00-108-222-450 is listed as shielded, which helps support EMI-sensitive network designs.
It uses 8P8C contacts, which is the standard RJ45 Ethernet format.
