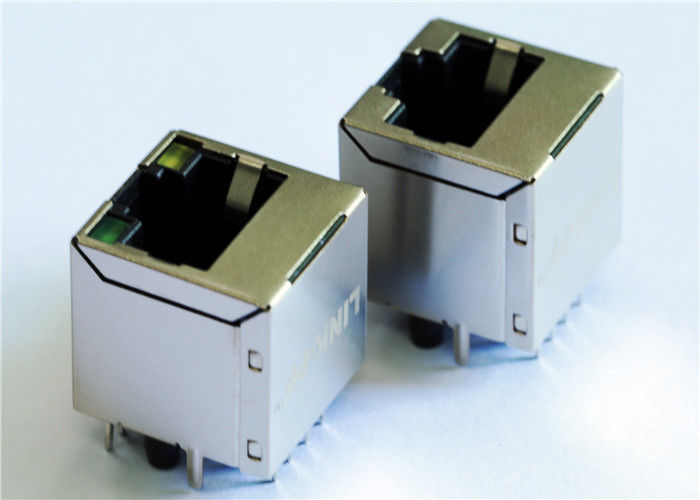

JKVP111108106H Pin to Pin Vertical RJ45 Jack Compatible 10/100Base-T Ethernet

Name: JKVP111108106H Pin to Pin Vertical RJ45 Jack Compatible 10/100Base-T Ethernet
Brand: LINK-PP
SKU: LPJD0115BGNL
Price: 0.09 USD
Availability: InStock
Rating: 4.8 (163 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJD0115BGNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1200 pcs) of each carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                stacked rj45 connectors, modular jacks rj45


Spec A:	JKVP111108106H	Spec B:	JKVP111108406H
Alternate Mfg:	LPJD0115BGNL	Family:	Vertical Magjack
Termination:	Solder	LEDs:	Optional
Ethernet:	10/100Base-T	Cross Rf:	LPJD0115BGNL = JKVP111108X06H

Spec A:	JKVP111108106H
Spec B:	JKVP111108406H
Alternate Mfg:	LPJD0115BGNL
Family:	Vertical Magjack
Termination:	Solder
LEDs:	Optional
Ethernet:	10/100Base-T
Cross Rf:	LPJD0115BGNL = JKVP111108X06H

JKVP111108106H Pin to Pin Vertical RJ45 Jack Compatible 10/100Base-T Ethernet

1.RJ45 1X1 Vertical LPJD0115BGNL
2.Through Hole Pin to Pin Equivalent
3.10/100/ Base-T Cross JKVP111108106H
4.Contact Area : Gold Flash

MAG., REVERSE LATCH , LED optional, EMI-finger Optional.

Description

1X1-Rj45 Vertical With Magnetics with/without leds, meeting IEEE 802.3 u

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

2600 staff,

100% test

Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
