Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HFJV1-1G06RL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 54 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10KGS (1080 pcs) of each carton
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part No: |
HFJV1-1G06RL |
Mass Production: |
LPJD0717DNL |
Original Manufacturer: |
LINK-PP |
Application: |
10/100/1000Base-T Ethernet |
Termination: |
Solder |
Mount Style: |
DIP / Top Entry |
Part No: |
HFJV1-1G06RL |
Mass Production: |
LPJD0717DNL |
Original Manufacturer: |
LINK-PP |
Application: |
10/100/1000Base-T Ethernet |
Termination: |
Solder |
Mount Style: |
DIP / Top Entry |

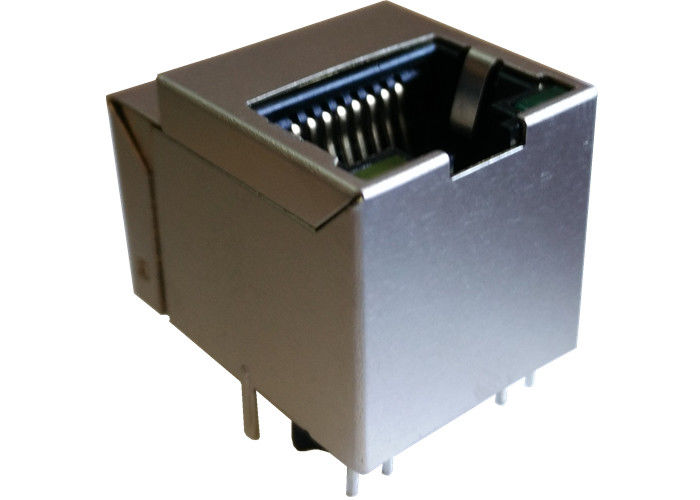

The HALO HFJV1-1G06RL is a single-port, vertical, integrated-magnetics RJ-45 jack designed for 10/100/1000 Base-T (Gigabit) Ethernet applications.
It belongs to the “FastJack™” family from HALO Electronics, targeted at board-mounted network interface design where space, signal integrity and manufacturability matter.
| Parameter | Value / Description |
|---|---|
| Ports | 1 × RJ-45 (8P8C) |
| Orientation | Vertical mount (top entry) |
| Mounting / Termination | Through-Hole Solder (THT) |
| Network Speed | 10/100/1000 Base-T |
| Compliance | IEEE 802.3 (10/100/1000 Base-T) |
| Return Loss (minimum) | –18 dB (1-40 MHz), –14 dB (60 MHz), –12 dB (80 MHz), –10 dB (100 MHz) |
| Height above board | ~0.650″ (≈ 16.51 mm) for the 1-port version. |
| Contact plating | 30 µin minimum gold (0.76 µm) on contact area. |
| Operating Temperature Range | 0 °C to +70 °C (Standard Temp version) |
| Standard Temp (0 to +70 °C) | Extended Temp (–40 to +85 °C) |
|---|---|
| HFJV1-1G01RL | HFJV1-E1G01RL |
| HFJV1-1G01-L11RL | HFJV1-E1G01-L11RL |
| HFJV1-1G01-L12RL | HFJV1-E1G01-L12RL |
| HFJV1-1G06RL | HFJV1-E1G06RL |
| HFJV1-1G06-L11RL | HFJV1-E1G06-L11RL |
| HFJV1-1G06-L12RL | HFJV1-E1G06-L12RL |
| HFJV1-1G11RL | HFJV1-E1G11RL |
| HFJV1-1G11-L11RL | HFJV1-E1G11-L11RL |
| HFJV1-1G11-L12RL | HFJV1-E1G11-L12RL |
| HFJV1-1G16RL | HFJV1-E1G16RL |
| HFJV1-1G16-L11RL | HFJV1-E1G16-L11RL |
| HFJV1-1G16-L12RL | HFJV1-E1G16-L12RL |
| HFJV1-1G41RL | HFJV1-E1G41RL |
| HFJV1-1G41-L11RL | HFJV1-E1G41-L11RL |
| HFJV1-1G41-L12RL | HFJV1-E1G41-L12RL |
| HFJV1-1G41-L51RL | HFJV1-E1G41-L51RL |
| HFJV1-1G46RL | HFJV1-E1G46RL |
| HFJV1-1G46-L11RL | HFJV1-E1G46-L11RL |
| HFJV1-1G46-L12RL | HFJV1-E1G46-L12RL |
| HFJV1-LTQ1-L12RL | HFJV1-ELTQ1-L12RL |
| HFJV1-LTQ1-L14RL | HFJV1-ELTQ1-L14RL |
