Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TG110-E055N5RL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.6-$1.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4500k/Month
Number Of Pins: |
16 |
Shielding: |
Shielded |
Termination: |
SMD |
Mount: |
Surface Mount |
Turns Ratio: |
1CT:1CT |
Operating Temperature: |
-40 °C Up To +85 °C |
Number Of Pins: |
16 |
Shielding: |
Shielded |
Termination: |
SMD |
Mount: |
Surface Mount |
Turns Ratio: |
1CT:1CT |
Operating Temperature: |
-40 °C Up To +85 °C |
Details of Single Port Transformer Modules:

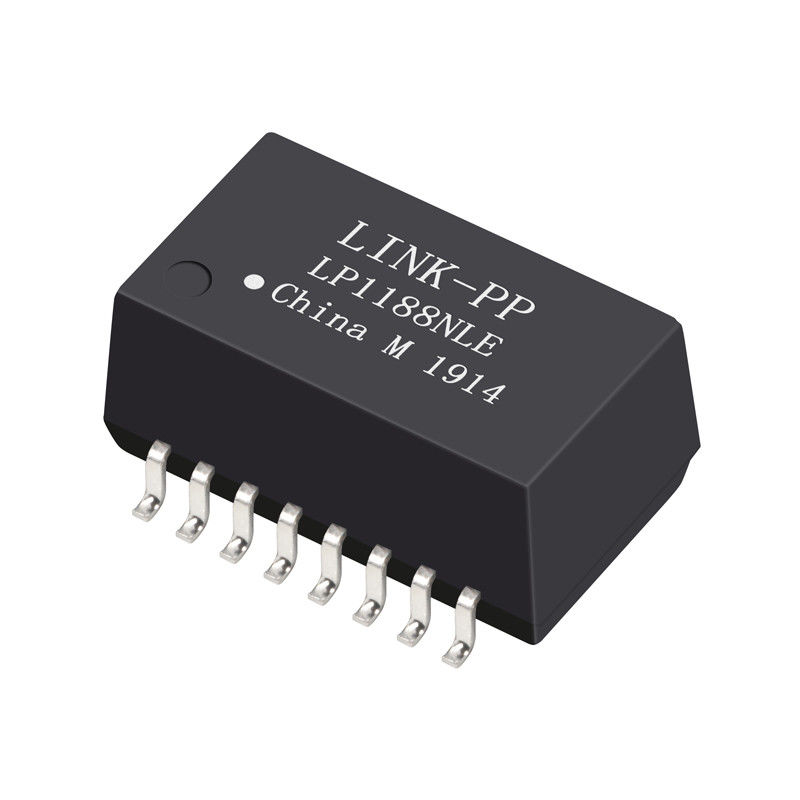

LINK-PP LP1188NLE 100% CROSS Halo TG110-E055N5RL | |
LINK-PP Part Number | LP1188NLE |
Specification | TG110-E055N5RL |
Speed | 10/100BASE-TX |
Number of Ports | SINGLE |
Application - LAN | ETHERNET (NoN-PoE) |
Package | SMD |
Operating Temperature Range | -40℃ TO +85℃ |
Turns Ratio (±3%) | 1CT:1CT |
Cw/w | 40pF max |
PRI/SEC LL | 0.4µH max |
PRI DCR | 1.0Ω max |
Construction | OPEN FRAME |
Cores Per Port | 4 |
Package Height (mm) | 6.35 |
Package Length (mm) | 12.7 |
Package Width (mm) | 7.11 |
LINK-PP Magenetics Certifications:
Other Part Number:
TD11-6006G | TD37-1205ALF | TG42-1205NM5RL | TG42-1205NSRL |
TD12-0756F | TD38-1505ALF | TG49-1205NM5RL | TG70-1205NSRL |
TD12-0756G | TD70-1205ALF | TG83-1205NM5RL | TG71-1205NSRL |
TD12-1506F | TD71-1205ALF | TGSP-S125NM5RL | TG08-1205N1LF |
TD12-1506G | TD72-1205ALF | TG36-1505NZRL | TG24-1205N1LF |
TD12-2506F | TG02-1205NSRL | TG43-1505NZRL | TG26-1205N1LF |
TD12-2506G | TG04-1205NSRL | TG48-1505NZRL | TG27-1205N1LF |
TG110-RP01NZRL | TG08-1205NSRL | TG75-1505NZRL | TG38-1205N1LF |
TG110-RP03NZRL | TG10-1205NSRL | TG85-1505NZRL | TG42-1205N1LF |
TG110-RPE9NZRL | TG15-1205NSRL | TG85-S002NZRL | TG48-1205N1LF |
TG110-RP05NYRL | TG23-1505NSRL | TG93-1505NZRL | TG63-1205N1LF |
TG110-RP10NYRL | TG37-1205NSRL | TG96-1505NZRL | TG64-1205N1LF |
TG110-RPE10NYRL | TG38-1205NSRL | TG97-1505NZRL | TG73-1205N1LF |
TG08-1505N5LF | TG23-1505NZRL | TG98-1505NZRL | TG74-1205N1LF |
TG23-1505N5LF | TG24-1505NZRL | TGSP-S225NZRL | TG80-1205N1LF |
TG24-1505N5LF | TG26-1505NZRL | TGSP-S281NZRL | TG27-1505N5LF |
TG26-1505N5LF | TG27-S004NZRL | TG08-1505NZRL | TG38-1505N5LF |
