24HSS1041A-2 HF Gigabit Ethernet Transformer 1CT:1CT SMD 1500Vrms LP5007NL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 24HSS1041A-2 HF

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

10/100base-t magnetics

,

ethernet transformer

Spec:
24HSS1041A-2 HF
Transformer Type:
Isolation And Data Interface
Turns Ratio - Primary:Secondary:
1 : 1 Transmitter, 1 : 1 Receiver
Mounting Type:
Surface Mount
Size / Dimension:
13.97mm L X16.51mm W
Height - Seated (Max):
6.60 Mm
Samples:
Available Free
Analogue PN:
LP5007NL
Spec:
24HSS1041A-2 HF
Transformer Type:
Isolation And Data Interface
Turns Ratio - Primary:Secondary:
1 : 1 Transmitter, 1 : 1 Receiver
Mounting Type:
Surface Mount
Size / Dimension:
13.97mm L X16.51mm W
Height - Seated (Max):
6.60 Mm
Samples:
Available Free
Analogue PN:
LP5007NL

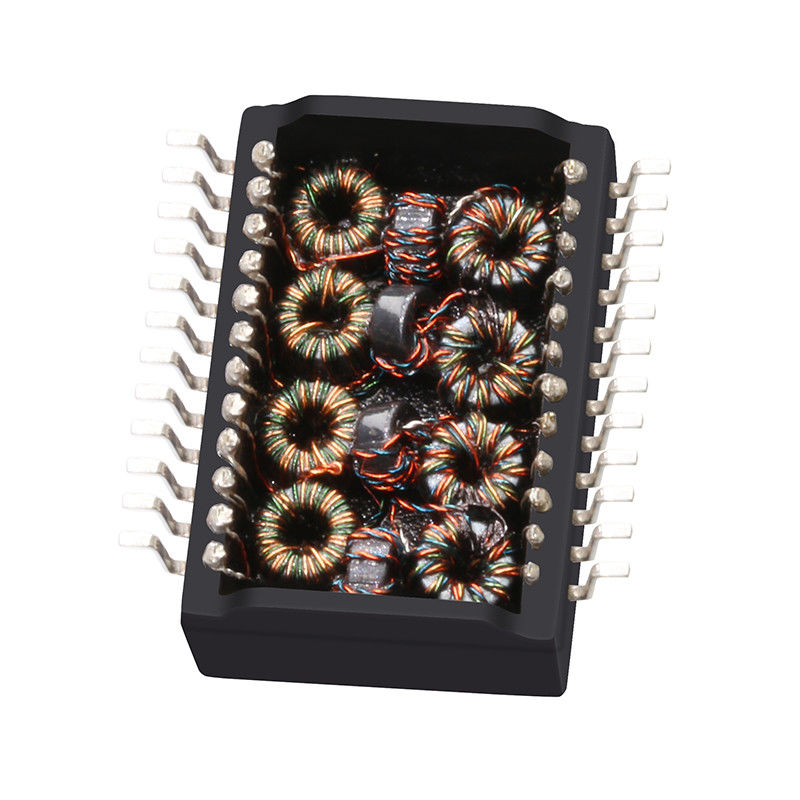

24HSS1041A-2 HF Gigabit Ethernet Transformer 1CT:1CT SMD 1500Vrms LP5007NL
24HSS1041A-2 HF Gigabit Ethernet Transformer 1CT:1CT SMD 1500Vrms LP5007NL



Product Features



1.Designed for long haul gigabit Ethernet 1000 BASE-T,full duplex applications.
2. Supports 4 pairs of category UTP-5 cable.

3. 1000 BASE –T MAGNETICS MODULES
3.Cable interface for isolation and low common mode emissions.
4.POE applications with 350mA current capability.
5.Compliant with IEEE 802.3ab standard for1000 BASE-T.
6.Comply with ROHS & Halogen Free requirements.
7.Operating temperature range: 0℃ to +70℃ or  Even- 40℃ to +85℃



Design Part Number: 24HSS1041A-2 HF

Mass Production Part Number LP5007NL Equivalent Cross In China Facilities



Electrical Specifications (25)



24HSS1041A-2 HF Gigabit Ethernet Transformer 1CT:1CT SMD 1500Vrms LP5007NL



1. Turns Ratio50KHz, 0.5V

    Chip side: Line side=1CT: 1CT+_2%

2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:

    Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

             60MHz: -35dB Min

             100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec

    Chip side to Line side


Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage



18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer



Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......
