Designing Model 【1840419-2​ / 1840419-3】LPJD1011BDNL/LPJD1011BENL

♦ Rj45 jack Vertical / Rj45 Connector Vertical Mount / Rj45 with magnetics

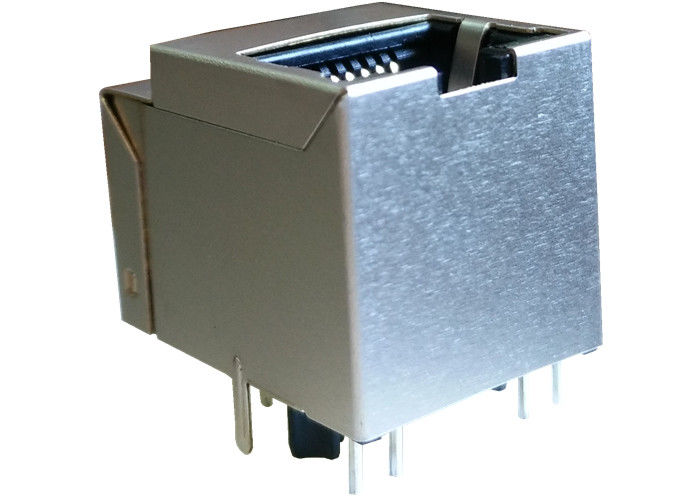

♦ 1840419-2 Vertical Rj45 With Integrated Magnetics 1840419-3
♦ Rj45 Integrated Magnetics Vertical / Vertical Mount Rj45 Jack
♦ Rj45 Vertical jack / Vertical Rj45 With Magnetics / Vertical Rj45 POE
♦ Rj45 Vertical Entry / Vertical entry Rj45 / Rj45 with integrated magnetics
♦ Vertical Modular Jack / vertical Rj45 / vertical Rj45 Jack / Rj45 Connector with integrated
♦ Conector Rj45 Vertical / stepped Rj45 PCB mounted Jacks / magnetic Rj45
♦ IEEE802.3ab Compliant Rj45 Connector Vertical
♦ 350uH min OCL at 8mA DC Bias Across theFull Temp Range
♦ 100% Compliance Testing
♦ 1500Vrms Hi-Pot

♦ Mass Production Model:【LPJDXXXXNL】

   MAG., REVERSE LATCH , LED optional, EMI-finger Optional.

Description

1. Product Type Features:
  1) Product Type : Connector Female
  2) Jack Type = RJ45 To Ethernet
  3) Profile = Standard Or Low Profile
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded Or Unshielded
4. Termination Related Features:
  1) EMI Finger - With Or Without
  2) Termination Method = Soldering
5. Body Related Features:
  1) Port Configuration = Single/Multi/Stacked
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
      Reflow-Solder capable to 245°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green
  2) Right LED Color (Position #2) = Yellow
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
     1500Vrms MIN
12.Power Over Ethernet: With Or Without

Competitive Advantage

1840419-2 / 1840419-3

18 years production experience,

2600 staff,

100% test

Flexible delivery time
