Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H1102FNL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: in Stock Ship Today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
H1102FNL / H1102NLT |
Turns Ratio - Primary:Secondary: |
1:1 Transmitter, 1:1 Receiver |
Mounting Type: |
Surface Mount |
Operating Temperature: |
0°C ~ 70°C |
Size / Dimension: |
12.8 Mm X 7.15mm |
Height - Seated (Max): |
6.20 Mm |
PoE RATING: |
NON-PoE |
SPEED: |
100BASE-TX |
Part Number: |
H1102FNL / H1102NLT |
Turns Ratio - Primary:Secondary: |
1:1 Transmitter, 1:1 Receiver |
Mounting Type: |
Surface Mount |
Operating Temperature: |
0°C ~ 70°C |
Size / Dimension: |
12.8 Mm X 7.15mm |
Height - Seated (Max): |
6.20 Mm |
PoE RATING: |
NON-PoE |
SPEED: |
100BASE-TX |

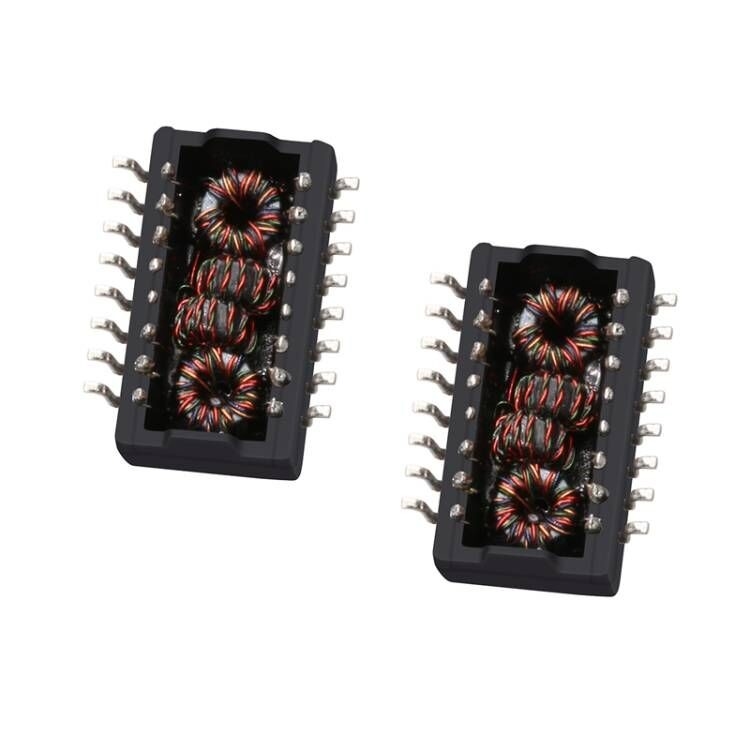

| H1102FNL / H1102NLT | 1:1 Transformer | One Port Transformer | 10/100 Base-T Transformer |
| Condition |
25℃ IEEE 802.3 SPECIFICATON |
|---|---|
| Part Number | H1102FNL / H1102NLT |
| LINK-PP Part Number | LP1102NL |
| OPERATING TEMP | 0°C – 70°C |
| TURNS RATIO | 1 : 1 ±2% |
| INSERTION LOSS | 100 KHz – 100 MHz, –1.1 dB MAX |
| INSERTION LOSS | 1–30 MHz: –16 dB MIN 30–60 MHz: –10 + 20*LOG₁₀(f/60 MHz) dB MIN 60–80 MHz: –10 dB MIN |
| INDUCTANCE (OCL) | 350 uH MIN |
| CROSSTALK | 1 MHz: –35 dB MIN 30 MHz: –35 dB MIN 80 MHz: –30 dB MIN 100 MHz: –30 dB MIN |
| DIFFERENTIAL TO COMMON MODE REJECTION | 30 MHz: –42 dB MIN 60 MHz: –37 dB MIN 100 MHz: –30 dB MIN |
| DC RESISTANCE, 1/2 WINDING | 0.65 OHMS MAX |
| DC RESISTANCE IMBALANCE | ±.065 OHMS MAX (CENTER TAP SYMMETRY) |
| INPUT – OUTPUT ISOLATION | 1500 VRMS MIN @ 60 SECONDS |
| LAN Transformers Part Number | |||
|---|---|---|---|
| 40SS1041E LF | H1102FNL | 40SS1041E LF | H1102FNL |
| 749013011A | 42410-6410 | TG01-0456NSRL | S558-5999-M8-F |
| 20PMT04B | HX0009NL | TG04-0406NSRL | S558-5999-P3-F |
| 000-7315-37R-LF1 | H1102FNL | TG04-TDK1N1RL | S558-5999-Z5-F |
| HX5G2003NL | 40SS1041E LF | TG05-2004NCRL | PH163003B |
| H5G1002NL | PM45-1040M | H1102FNL | H40520SN |
| HST-1026DR | 20PMT04B | TG110-6506NXRL | H1602PR |
| 40SS1041E LF | PH163003B | TG110-RPE17NV6RL | H1102FNL |
| H1102FNL | 20PMT05B | TG110-S053P2RL | PM45-1040M |
| 40SS1041E LF | XTFZ-DHS1623CC2 | H1102FNL | 40SS1041E LF |
| HU4006NL | PM45-1040M | TG111-E112NYRL | SI-53019 |
| H5004NL | HST-1026DR | TG111-HPE3NZRL | SI-53019-F |
| HST-1026DR | 20PMT04B | TG1G-E012NZRL | SI-55004-F |
