Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 100B-1003/X/FNL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
100B-1003/100B-1003X/100B-1003FNL |
Family: |

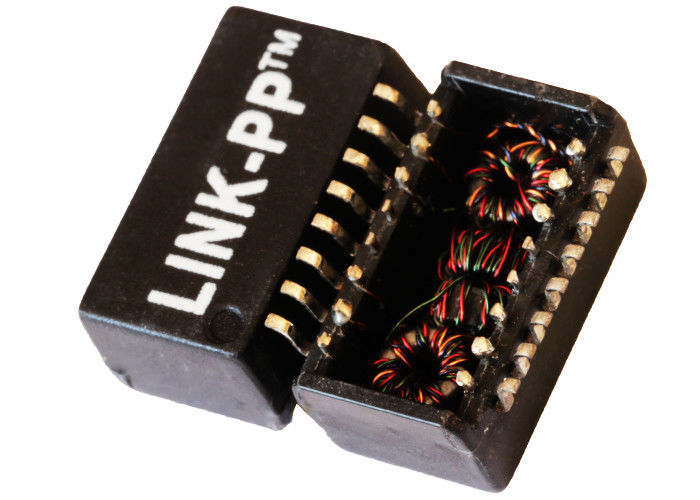

10/100M Transformer |
Number Of Ports: |
Single |
Mounting: |
SMT |
Size / Dimension: |
12.7mm X 6.73mm X 5.72mm |
PIN Number: |
16 |
Temperature: |
-40 TO +85℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
100B-1003/100B-1003X/100B-1003FNL |
Family: |
10/100M Transformer |
Number Of Ports: |
Single |
Mounting: |
SMT |
Size / Dimension: |
12.7mm X 6.73mm X 5.72mm |
PIN Number: |
16 |
Temperature: |
-40 TO +85℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
1. Compliant with IEEE 802.3u & ANSI X3.263 standards
2. 350µH OCL with 8mA bias, MSL: 3
3. IC grade transfer-molded package withstands
4. 235°C peak temperature profile. RoHS version withstands 245°C
5. AS9100C Certified (Based on and including ISO 9001:2008)
Electrical Specifications @ 25°C
Isolation Voltage: 1,500Vrms
OCL @100KHz, 8mA: 350µH min
CMR (0.1-100MHz): -40dB typ
Crosstalk (0.1-100MHz): -40dB min
Insertion Loss (0.1-100MHz) -1.1dB max
Return Loss (0.5-30MHz): -18dB min
(40MHz): -15.5dB min
(50MHz): -13.6dB min
(60-80MHz): -12dB min
Applications:
10/100BASE-TX Single-Port Transformer Modules , Military / Aerospace Grade
Networking equipment / Hubs
Switches / Routers / PCs / Servers
Workstations / Motherboards
Equipment utilizing a network port
NICs / Servers / PCs
Consumer Devices
Other Items Specifications:
| 100B-1001FX | 100B-1001FXNL | 100B-1001FXNLT |
| 100B-1003 | 100B-1003NL | 100B-1003NLT |
| 100B-1003F | 100B-1003FNL | 100B-1003FNLT |
| 100B-1003X | 100B-1003XNL |
100B-1003XNLT |
