| Item: | TS6121K | Turns Ratio: | 1:1 |
|---|---|---|---|
| OCL: | 350 | Design PN: | TS6121K |
| Mass Production PN: | TS6121K => LP1193NL | Mounting: | SMD/SMT |
| Archivi Disponibil: | PDF/3D/ISG/Stp/Step/Datasheet | ||
| Highlight: | gigabit magnetics transformer,ethernet transformer |
||

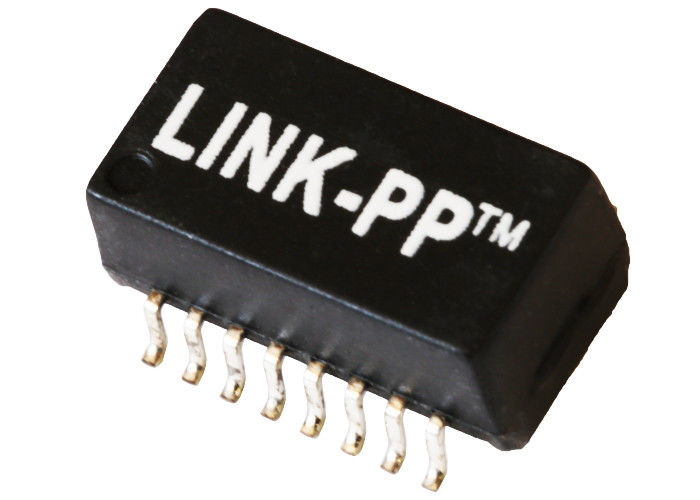

TS6121K 10/100 Base-t Pulse Transformer Datasheet / Specifications / PDF / Price / Cross
Designed to meet IEEE 802.3u requirement, including 350uH OCL with 8mA bias.
16 Pin SMD surface mount package.
Dual channel low cost.
Operation temperature: 0°C to +70°C.
Storage temperature range: -25℃ to +125℃.
Single Port Lan Transformer
ColiStructure: Toroidal
100base-t transformer
SMD, 16 pins
10 / 100 BASE-TX Single Port Lan Transformer With 16 Pins TS6121K => LP1193NL
Description:
Single Port 100 Base-t ETHERNET MAGNETIC TRANSFORMERS
| Application | LAN ETHERNET(PoE&NON PoE) |
| AutomDX | YES |
| Comment | RoHS Compliant LPXXXXNL |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Construction | TRANSFER MOLD |
| Cores Per Port | 4 |
| Number of Ports | Single |
| PCB | NO PCB |
| Package | SMT |
| Package Height (Inches) | 0.225 or other |
| Package Height (mm) | 5.715 or other |
| Package Length (Inches) | 1.12 or other |
| Package Length (mm) | 28.448 or other |
| Package Width (Inches) | 0.63 or other |
| Package Width (mm) | 16.002 or other |
| RoHS Compliant | YES-RoHS-6 |
| Speed | 10/100/1000BASE-TX |
| Temperature | 0 TO 70/-40 To +85 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| Main P/N | LP1193NL, etc |
Electrical Specifications(25):
1. Turns Ratio 50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min
