Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HX1198NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
HX1198NL / HX1198 |
Family: |
SMT LAN Transformer |
Turns Ratio: |
1CT:1CT |
Mounting: |
SMT |
Size / Dimension: |
12.7mm X 9.3mm |
Height - Seated (Max): |
6.20 Mm |
Data Rate: |
100BASE-TX |
Mounting Style: |
SMD |
Specifications: |
HX1198NL / HX1198 |
Family: |
SMT LAN Transformer |
Turns Ratio: |
1CT:1CT |
Mounting: |
SMT |
Size / Dimension: |
12.7mm X 9.3mm |
Height - Seated (Max): |
6.20 Mm |
Data Rate: |
100BASE-TX |
Mounting Style: |
SMD |

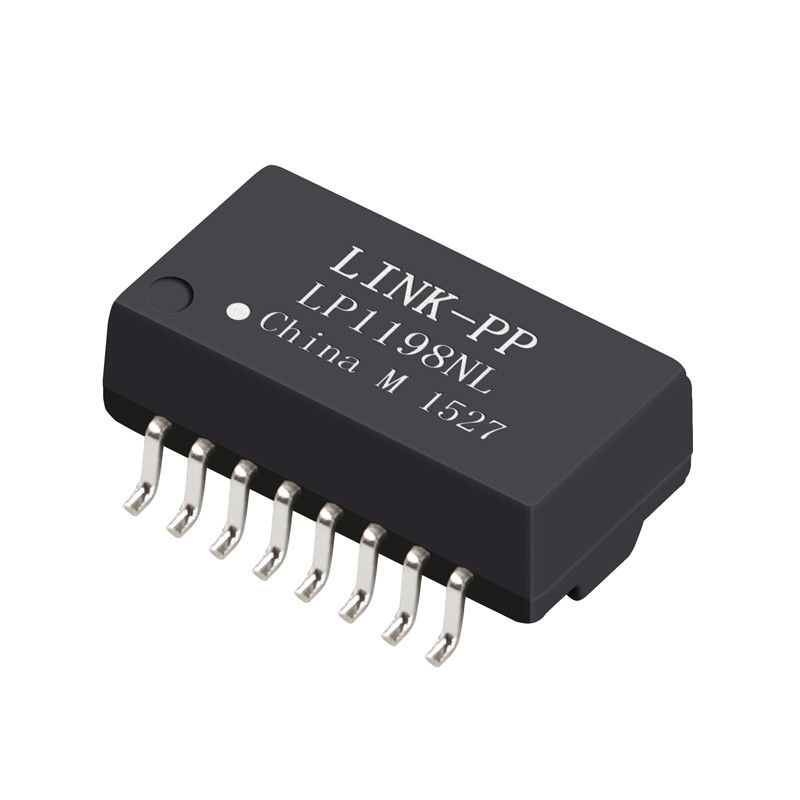

| HX1198NL / HX1198 | SINGLE PORT SURFACE MOUNT | 10/100BASE-T Transformer |
The HX1198NL is a single-port, surface-mount (SMT) 10/100Base-TX Ethernet transformer module. It is designed for Ethernet applications requiring signal isolation, impedance matching, and common-mode noise suppression. The component is compliant with IEEE 802.3u and ANSI X3.263 standards, ensuring reliable data transmission for network interface cards (NICs), routers, and switches. It is also RoHS-6 compliant and is not designed for Power over Ethernet (PoE) applications.
|
Feature
|
Specification
|
|---|---|
|
Application
|
10/100Base-TX Ethernet
|
|
Number of Ports
|
Single Port
|
|
Mounting Type
|
Surface Mount (SMT)
|
|
Turns Ratio (TX/RX)
|
1:1
|
|
Open Circuit Inductance (OCL)
|
350µH minimum (at 100kHz, 0.1V, 8mA DC Bias)
|
|
Isolation Voltage
|
1500Vrms
|
|
Operating Temperature
|
-40°C to +85°C
|
|
Package Dimensions (L x W x H)
|
12.7mm x 9.4mm x 5.97mm (.500" x .370" x .235")
|
|
RoHS Compliance
|
Yes (RoHS-6)
|
Isolation Voltage: 1,500Vrms
OCL @100KHz, 8mA: 350µH min
CMR (0.1-100MHz): -40dB typ
Crosstalk (0.1-100MHz): -40dB min
Insertion Loss (0.1-100MHz) -1.1dB max
Return Loss (0.5-30MHz): -18dB min
(40MHz): -15.5dB min
(50MHz): -13.6dB min
(60-80MHz): -12dB min
| HX1198NL 10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS HX1198 IEEE 802.3 | |||
|---|---|---|---|
| 20PT1021A LF | LGP5409 LF | GST5009 LF | VP2006B LF |
| 20PT1021FX1 LF | PG4P109 LF | GST5009-1 LF | VP2006Z LF |
| 20PT1021IX1 LF | PG4P109N LF | HX1198NL | VP2008 LF |
| 20PT1021IZ LF | PG4P209 LF | GS5012M1 LF | VP2009 LF |
| 20PT1021SX1 LF | HX1198NL | GS5014 LF | VP2014 LF |
| 20PT1021SX1 LF | PG4P209RZN LF | GS5014-1 LF | VP2017 LF |
| 20PT1024X1 LF | PG4P216N LF | GS5014B LF | VP8019 HF |
| HX1198NL | PG4P219AN LF | GS5014M LF | HX1198NL |
| 20PT1024SX LF | PG4P219N LF | GS5014R LF | VP8019AM2 HF |
| 20PT1024RSX LF | HX1198NL | GS5014R LF | VP8019B HF |
| 20PT1024RX LF | PG4P229N LF | GS5014RY LF | VP6014 HF |
| 20PT1124SX LF | PG4P609N LF | GS5014RYH LF | VP6014D HF |
| 24STS05 LF | PG4P629N LF | GS5014RZ LF | VP6015 LF |
| 40PT1041AX LF | PG4P809N LF | GS5016 LF | VP6017 LF |
