Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TG110-050N5RL / SMST-1666
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
PN: |
TG110-050N5RL / SMST-1666 |
Turn Ratio: |
1:1 |
Rating: |
10/100Base-T |
Port: |
Single |
POE: |
With Or Wtthout |
Mounting: |
SMD |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
PN: |
TG110-050N5RL / SMST-1666 |
Turn Ratio: |
1:1 |
Rating: |
10/100Base-T |
Port: |
Single |
POE: |
With Or Wtthout |
Mounting: |
SMD |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

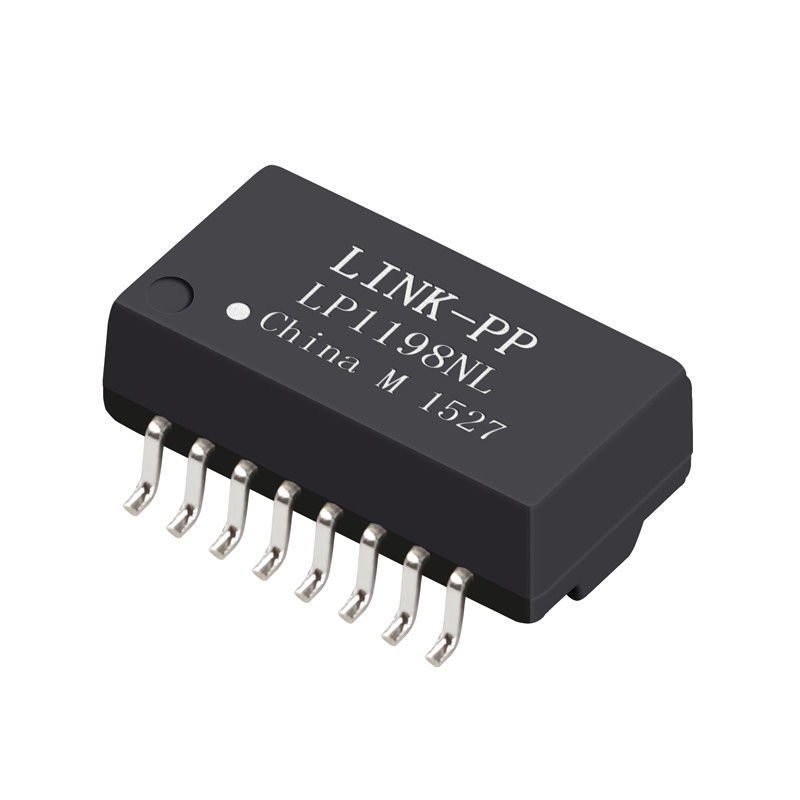

| TG110-050N5RL / SMST-1666 | 10/100BT Transformer Module | Lan Transformer |
|---|
1.Single Port Lan Transformer
2.ColiStructure: Toroidal
3.10/100 base-t transformer
4.SMD, 16pins
SMD Single Port 10/100BASE-TX Transformer
Electrical Specifications(25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min
| TG110-050N5RL SMD Single Port 10/100BASE-TX Transformer LP1198NL / SMST-1666 | |||
|---|---|---|---|
| TG110-050N5RL | PG4P219AN-2 LF | GST5009-E LF | TS6121C |
| H4P140NX LF | HG5PNX LF | GST5009H LF | TS6121CX |
| H4P041RNX LF | TG110-050N5RL | TG110-050N5RL | TS6121K |
| HG2PM109N LF | BCM-5855CI LF | G4P109 LF | TS8121A |
| 40SS1040AXM2 HF | 4S1068 HF | G4P209 LF | TS8121C |
| 40SS1041A HF | 4S1070 HF | G5P109 LF | TS8121CX |
| 40SS1041AX HF | 4S1142 HF | GOP109 LF | S5833H LF |
| 40SS1041RX HF | 4S1344M1 LF | TG110-050N5RL | 12ST0020P LF |
| 40SS1064A HF | S1188 HF | GP5409 LF | 12ST0022P LF |
| 40SS1140AX1 HF | S6800 LF | GP5419NY LF | 12ST0022PF LF |
| TG110-050N5RL | S1188M HF | TG110-050N5RL | TG110-050N5RL |
| 40SS1041 HF | S5498 LF | GP5419R LF | 10G2SA02 |
| 40ss1041AXM HF | S5612 LF | G4P106 LF | 24SH10410 HF |
