Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LFE8659
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
LFE8659 |
Turn Ratio: |
1:1 |
Speed: |
10/100Base-T |
Port: |
Single |
Application: |
Ethernet (NON PoE) |
Mounting: |
SMD |
Temperature: |
0 TO + 70℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
LFE8659 |
Turn Ratio: |
1:1 |
Speed: |
10/100Base-T |
Port: |
Single |
Application: |
Ethernet (NON PoE) |
Mounting: |
SMD |
Temperature: |
0 TO + 70℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |

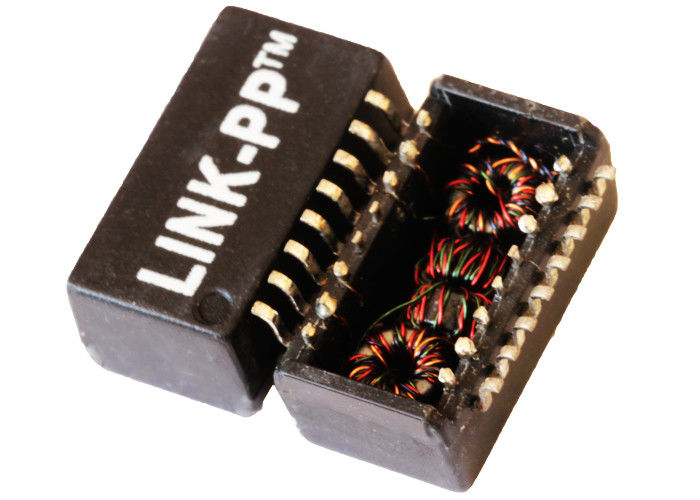

| LFE8659 => LP1302NL | 10/100BT Transformer Module | Lan Transformer |
|---|
1.Single Port Lan Filter
2.ColiStructure: Toroidal
3.10/100 base-t transformer
4.SMT, 16pins
Electrical Specifications @25℃:
1.Turns Ratio:
TX=1CT:1CT RX=1CT:1CT
2.Insertion Loss:
0.1-100MHz:-1.1dB MAX
3.Return Loss(dB TYP):
30MHz:-16 60MHz:-10
80MHz:-10
4.Crosstalk(dB TYP):
30MHz:-35 60MHz:-30
100MHz:-30
5.DCMR(dB TYP):
30MHz:-42 50MHz:-37
100MHz:-32
6.Hipot:1500Vrms MIN
7.Operating Temperature:0～70℃
| LFE8659 10/100Base-T Ethernet Single Port Transformer Modules LP1302NL Cross | |||
|---|---|---|---|
| TG110-050N5RL | PG4P219AN-2 LF | GST5009-E LF | LFE8659 |
| H4P140NX LF | HG5PNX LF | GST5009H LF | TS6121CX |
| H4P041RNX LF | LFE8659 | TG110-050N5RL | TS6121K |
| HG2PM109N LF | BCM-5855CI LF | G4P109 LF | LFE8659 |
| 40SS1040AXM2 HF | 4S1068 HF | G4P209 LF | TS8121C |
| 40SS1041A HF | 4S1070 HF | LFE8659 | TS8121CX |
| 40SS1041AX HF | 4S1142 HF | GOP109 LF | S5833H LF |
| 40SS1041RX HF | 4S1344M1 LF | TG110-050N5RL | 12ST0020P LF |
| LFE8659 | LFE8659 | GP5409 LF | 12ST0022P LF |
| 40SS1140AX1 HF | S6800 LF | GP5419NY LF | 12ST0022PF LF |
| TG110-050N5RL | S1188M HF | TG110-050N5RL | TG110-050N5RL |
| 40SS1041 HF | S5498 LF | GP5419R LF | LFE8659 |
| 40ss1041AXM HF | S5612 LF | LFE8659 | 24SH10410 HF |
