Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: VP2006AM
Document: LP2006ANL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: 2-3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4KK/Month
P/N: |
VP2006AM |
LINK-PP P/N: |
LP2006ANL |
Data Rate: |
10/100Base-TX |
Port: |
Dual Port |
Mounting: |
SMD |
Type: |
VoIP Magnetics Modules |
PoE: |
Support |
P/N: |
VP2006AM |
LINK-PP P/N: |
LP2006ANL |
Data Rate: |
10/100Base-TX |
Port: |
Dual Port |
Mounting: |
SMD |
Type: |
VoIP Magnetics Modules |
PoE: |
Support |
|

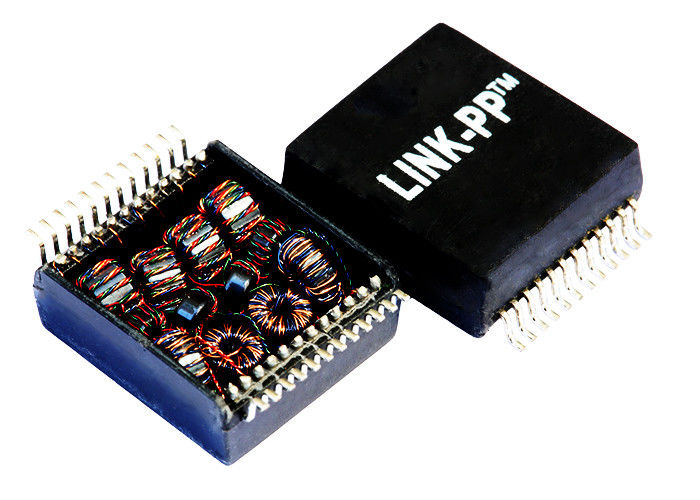

VP2006AM = LP2006ANL |
Dual Port PoE Transformer |
IEEE 802.3af / ANSI 350mA POE |
1. Designed to support application,such as SOHO(ADSL modems),LAN-on-Motherboard(LOM),hub and Switches.
2. Meets IEEE 802.3af specification.
3. Power over Ethernet(PoE)Magnetics.
4. Maximum reflow temperature is 250℃,5 seconds.
5. UL certification: file number E484635.
|
Parameter |
Condition / Frequency |
Specification |
|---|---|---|
|
Turns Ratio (±5%) |
TX / RX |
1CT : 1CT |
|
OCL (Open Circuit Inductance) |
@100kHz, 0.1V, 8mA |
≥ 350 μH |
|
Insertion Loss |
1 – 100 MHz |
≤ -1.1 dB |
|
Return Loss (dB Min) |
1 – 30 MHz |
≥ -16 dB |
|
|
40 MHz |
≥ -12 dB |
|
|
50 MHz |
≥ -12 dB |
|
|
60 – 80 MHz |
≥ -10 dB |
|
|
100 MHz |
≥ -10 dB |
|
Crosstalk (dB Min) |
30 MHz |
≥ -40 dB |
|
|
60 MHz |
≥ -35 dB |
|
|
100 MHz |
≥ -30 dB |
|
DCMR (Differential to Common Mode Rejection) |
30 MHz |
≥ -43 dB |
|
|
60 MHz |
≥ -37 dB |
|
|
100 MHz |
≥ -33 dB |
|
Balance DC Line Current |
@57VDC Continuous |
≤ 350 mA |
|
Isolation Voltage |
– |
≥ 1500 Vrms |
|
Operating Temperature |
– |
-40°C to +85°C |
