Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HX1225FNL / HX1225FNLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
HX1225FNL / HX1225FNLT |
Transformer Type: |
Isolation And Data Interface |
Turns Ratio: |
1CT : 1CT |
Size / Dimension: |
12.70mm X 9.30mm X 6.20mm |
Hipot: |
1500V |
LINK-PP P/N: |
LP41654ANL |
Temperature: |
- 40 TO + 85℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
HX1225FNL / HX1225FNLT |
Transformer Type: |
Isolation And Data Interface |
Turns Ratio: |
1CT : 1CT |
Size / Dimension: |
12.70mm X 9.30mm X 6.20mm |
Hipot: |
1500V |
LINK-PP P/N: |
LP41654ANL |
Temperature: |
- 40 TO + 85℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |

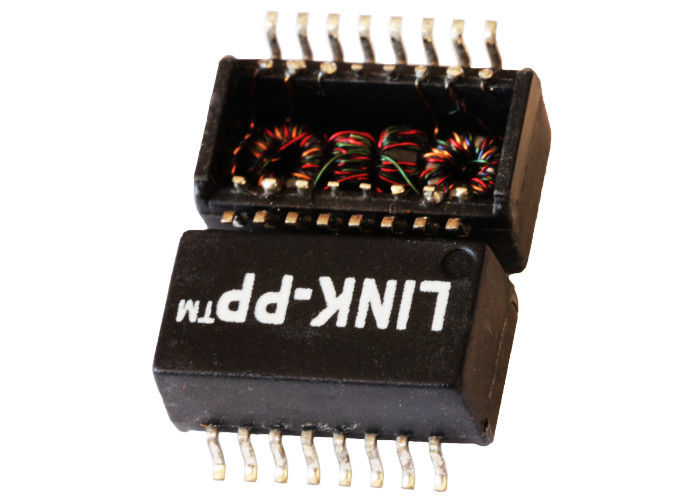

HX1225FNL / HX1225FNLT 100Base-T Ethernet MDL 1:1 TU Isolation Transformer
|
Pulse HX1225FNL / HX1225FNLT |
Datasheet/Price/Specification/3D |
10/100 Transformer |
Cross LP41695ANL |
Electrical Specifications @ 25°C
1.Turns Ratio:
(2-3):(15-14)=1CT:1CT
%%P2%P (6-7):(11-10) =1.5CT:1CT %%P2%P2.OCL:
200uH MIN @100KHz,0.1Vrms,at +25℃;
100uH MIN @100KHz,0.1Vrms,at -45℃;
100uH MIN @100KHz,0.1Vrms,at +95℃;
3.Isolation(Input- Output):
1650Vrms,6 Seconds MAX
4.Insertion Loss:
TX: 1-50MHz: -1.0dB MAX
RX: 1-50MHz: -1.5dB MAX
5.Return Loss(@100Ω):
TX: 0.5-40MHz: -18dB MIN
60MHz: -14.5dB MIN
80MHz: -12dB MIN
RX: 0.5MHz: -18dB MIN
40MHz: -10dB MIN
60MHz: -8dB MIN
80MHz: -6dB MIN
6.Cross Talk:
30MHz: -45dB MIN
60MHz: -35dB MIN
100MHz: -30dB MIN
7.Operating Temperature: 0℃～70℃/-40℃～+85℃
| HX2326NL MODULE 10/100B-T POE(+) SMD Pulse Transformers Surface Mount HX2326FNL | |||
|---|---|---|---|
| 0875-1G2T-E3 | C855-2B4R-54 | HX2326FNL | 0879-2C6R-54 |
| HX1225FNL | 7490101120 | HX2326NL | HX2326FNL |
| 0826-1X4T-43-F | 0810-2H6R-28-F | 0811-2X4R-28-F | 0854-2X8R-GK-F |
| HX2326NL | 20PT1024X LF | 7490101120 | 0895-2X6R-GK |
| 13F-2010CNL | S553-6500-D8 | S560-6600-GG | S553-6500-43 |
| 7490101120 | 7490101120 | LP41606NL | S553-6500-44 |
| HX1225FNL | S553-6500-E2 | S560-6600-GK | 13F-2010CNL |
| S553-1084-11 | LP41654ANL | S560-6600-GM | S553-6500-55 |
| S553-1506-AE | S553-6500-E4 | S560-6600-GV | S553-6500-58 |
| LP41654ANL | S553-6500-E5 | 7490101120 | 7490101120 |
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.With various Turns Ratios.
3.RoHS"NL" peak solder rating 260℃%%P5℃.
HX1225FNL / HX1225FNLT 100Base-T Ethernet MDL 1:1 TU Isolation Transformer
