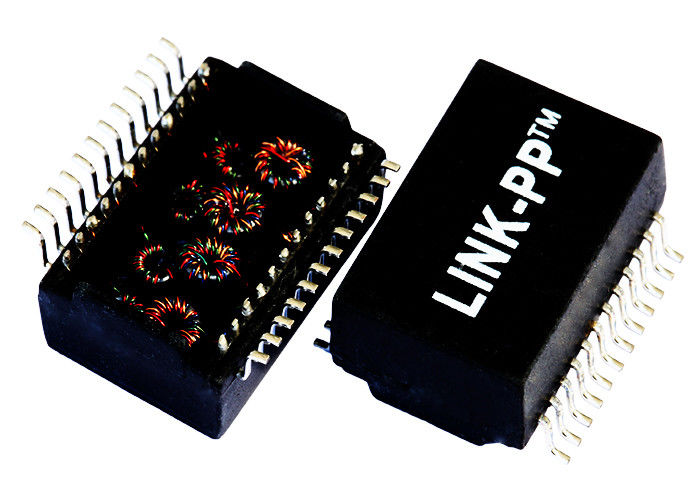

Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HN2436G
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Model: |
HN2436G |
Transformer Type: |
1000Base-T Magnetics Modules |
Turns Ratio: |
1CT : 1CT |
Mounting Type: |
Surface Mount |
Hipot: |
1500V |
Mass Production: |
LP82440ANL |
Temperature: |
-40℃ TO +85°C |
Model: |
HN2436G |
Transformer Type: |
1000Base-T Magnetics Modules |
Turns Ratio: |
1CT : 1CT |
Mounting Type: |
Surface Mount |
Hipot: |
1500V |
Mass Production: |
LP82440ANL |
Temperature: |
-40℃ TO +85°C |
1. Inductance OCL: 350uH Min @ 100KHz 0.2V 8mA DC BIAS
2. Leakage Inductance: 0.50uH Max @ 100KHz 0.2V
3. Interwinding Capacitance: 25PF TYP @ 100KHz 0.2V
4. DC Resistance: 0.9Ω Max
5. Turn Ratio: 1CT:1CT±5%
6. Return Loss
0.5-30 MHz: - 18dB Min
40 MHz: - 14.4 dB Min
50 MHz: - 13.1 dB Min
60-80 MHz: - 12.0 dB Min
100 MHz: - 10 dB Min
7. Insertion Loss: 1-100MHz: -1.0dB MAX
8. Cross Talk:
60 MHz: - 45dB Min
60 MHz: - 40dB Min
100 MHz: -35dB Min
9. Common Mode Rejection: 0.5-100 MHz - 20dB Min
10. Isolation HI-POT: 1500VAC 1min
11. Operating Temperature: -40℃ TO ＋85℃
1. Designed For Gigabit Transceivers
2. Peak Reflow Temperature Rating 250 °C
3. Magnetics, Designed For Gigabit PHY Used In Backplane.
4. Compliant With IEEE 802.3ab Standard.
5. UL Certification: File Number E484635.
