Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TGS110-MT1NCRL / 12PS6121C LF
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
PN: |
TGS110-MT1NCRL |
Transformer Type: |
Isolation And Data Interface |
Turns Ratio: |
1CT : 1CT |
Size / Dimension: |
14mm L X7.8mm W |
Hipot: |
1500V |
Mass Production: |
LP41205NL |
Item: |
12PS6121C LF |
Port: |
1 |
PN: |
TGS110-MT1NCRL |
Transformer Type: |
Isolation And Data Interface |
Turns Ratio: |
1CT : 1CT |
Size / Dimension: |
14mm L X7.8mm W |
Hipot: |
1500V |
Mass Production: |
LP41205NL |
Item: |
12PS6121C LF |
Port: |
1 |
Halo TGS110-MT1NCRL |
Cross LP41205NL |
12PS6121C LF |
Datasheet/Price/Specification/3D |
Feature
TGS110-MT1NCRL Magnetic designs to support every PHY. 12PS6121C LF
Complies with IEEE 802.3 standards including 350 uH min OCL with 8mA bias.
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6+, No PBB and PBDE and No Pb on external pins.
Electrical Specifications @ 25°C
1.Turns Ratio(PRI:SEC ±3%):
P1-3:P12-10 1CT:1CT
P4-6:P9-7 1CT:1CT
2.Inductance OCL(100KHz 0.1Vrms 8mA):
P1-3,P4-6 350uH Min
3.Leakage Inductance:
P1-3,P4-6 0.8uH Max
4.D.C.R:
P1-3,P4-6 0.9Ω Max
5.Crlsstalk:
1-100MHz -40dB Typ
6.CMR:
1-100MHz -40dB Typ
7.Isolation HI-POT: 2500VAC/minute
8.Operating Temperature: 0℃~70℃.
9.Storage Temperature Range: -40℃~+85℃

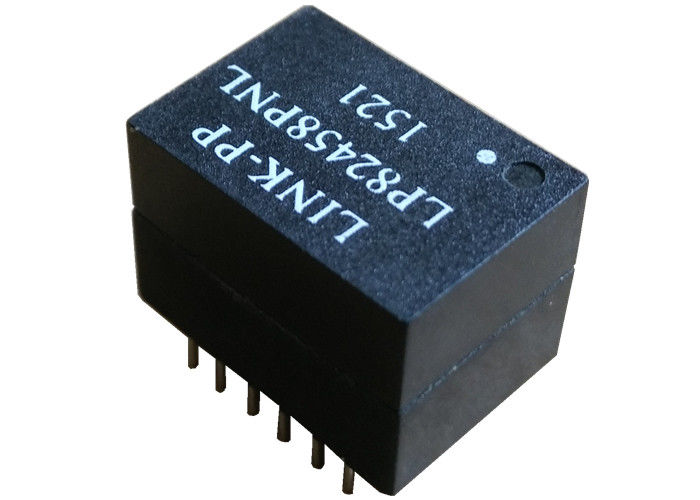

TGS110-MT1NCRL Single 10/100Base-T Ethernet Lan Magnetic 12PS6121C LF | |||
---|---|---|---|
H4P041NX LF | C855-2B4R-54 | H4P041NX LF | 0879-2C6R-54 |
HX1225FNL | H4P041NX LF | H4P041NX LF | H4P041NX LF |
0826-1X4T-43-F | 0810-2H6R-28-F | 0811-2X4R-28-F | 0854-2X8R-GK-F |
HX2326NL | 20PT1024X LF | H4P041NX LF | 0895-2X6R-GK |
13F-2010CNL | H4P041NX LF | S560-6600-GG | 12PS6121C LF |
7490101120 | TGS110-MT1NCRL | H4P041NX LF | S553-6500-44 |
H2001DG | S553-6500-E2 | HN4264VG | H4P041NX LF |
S553-1084-11 | LP41654ANL | S560-6600-GM | S553-6500-55 |
TGS110-MT1NCRL | S553-6500-E4 | S560-6600-GV | HN4264VG |
LP41654ANL | H4P041NX LF | 12PS6121C LF | 7490101120 |
NOTES:
1.Meets all IEEE standards including 350uH OCL with 8mA bias
2.Symmetrical TX and RX channels for auto MDI/MDIX capability
3.For RoHS compliant parts add suffix NL
4.RoHS "NL" peak solder rating 235℃.
