Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H1602PR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
PN: |
H1602PR |
Transformer Type: |
Isolation And Data Interface |
Turns Ratio: |
1CT : 1CT |
Size / Dimension: |
14mm L X7.8mm W |
Hipot: |
1500V |
Mass Production: |
LP41604ANL |
PN: |
H1602PR |
Transformer Type: |
Isolation And Data Interface |
Turns Ratio: |
1CT : 1CT |
Size / Dimension: |
14mm L X7.8mm W |
Hipot: |
1500V |
Mass Production: |
LP41604ANL |
|

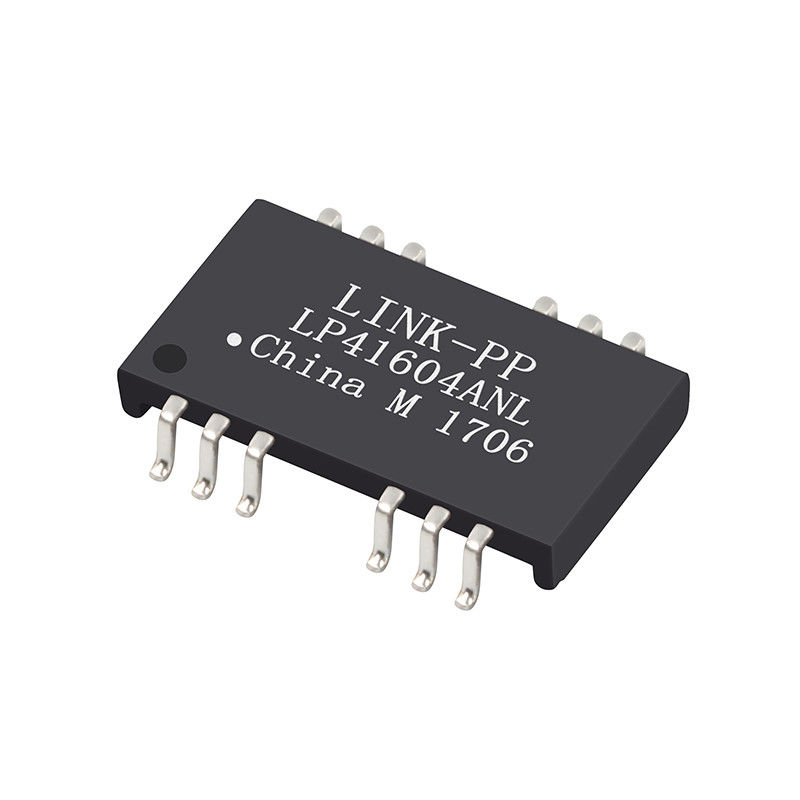

H1602PR |
Cross LP41604ANL |
10/100B |
Datasheet/Price/Specification/3D |
Feature
H1602PR Magnetic designs to support every PHY. LP41604ANL
Complies with IEEE 802.3 standards including 350 uH min OCL with 8mA bias.
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6+, No PBB and PBDE and No Pb on external pins.
Electrical Specifications @ 25°C
1.Turn Ratio(%%P3%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL:
350uH MIN @ 100KHz 0.1V
3.Insertion Loss:
-1.1dB MAX @ 1-100MHz
4.Return Loss:
-16dB MIN @ 1-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test:1500Vrms
8.Operating Temperature Range: -40℃ TO +85℃.
| H1602PR Ethernet Pulse Transformer LP41604ANL 10/100B PHY Compatible | |||
|---|---|---|---|
| H4P041NX LF | C855-2B4R-54 | H4P041NX LF | LP41604ANL |
| HX1225FNL | H1602PR | H4P041NX LF | H4P041NX LF |
| 0826-1X4T-43-F | 0810-2H6R-28-F | 0811-2X4R-28-F | 0854-2X8R-GK-F |
| HX2326NL | 20PT1024X LF | H4P041NX LF | 0895-2X6R-GK |
| H1602PR | H4P041NX LF | S560-6600-GG | 12PS6121C LF |
| 7490101120 | TGS110-MT1NCRL | H4P041NX LF | S553-6500-44 |
| H1602PR | S553-6500-E2 | H1602PR | H4P041NX LF |
| S553-1084-11 | LP41654ANL | S560-6600-GM | S553-6500-55 |
| TGS110-MT1NCRL | S553-6500-E4 | S560-6600-GV | HN4264VG |
| LP41654ANL | H4P041NX LF | 12PS6121C LF | LP41604ANL |
NOTES:
1.Designed to support application,such as SOHO(ADSLmodems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification.
3.Maximun reflow temperature is 260℃,10s,3 times.
