Name: Bothhand NS0013B LF 10/100Base-T Ethernet Transformer
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: NS0013B-LF
Price: 1.06 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: NS0013B-LF

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            10/100Base-t Magnetics, NS0013B LF, Discrete LAN Magnetics


Type:	Discrete LAN Magnetics	Bothhand P/N:	NS0013B LF
Made In China:	LINK-PP LP41604ANL	Applications:	PC Card
Data Rate:	10/100 BASE-T	Mounting:	SMT
Resources:	PDF/3D/ISG/Stp/Step/Datasheet

Type:	Discrete LAN Magnetics
Bothhand P/N:	NS0013B LF
Made In China:	LINK-PP LP41604ANL
Applications:	PC Card
Data Rate:	10/100 BASE-T
Mounting:	SMT
Resources:	PDF/3D/ISG/Stp/Step/Datasheet

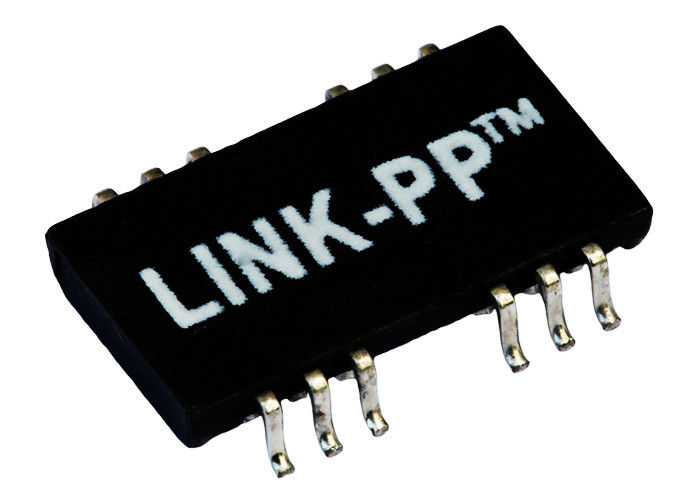

Bothhand NS0013B LF 10/100Base-T Ethernet Transformer

NS0013B LF Gigabit Discrete LAN Magnetics Overview

Features:

IEEE 802.3 Ethernet compatible.
Low-profile package for PCMCIA (PC Card).
Designed to work with leading Ethernet PHY transceivers.
RoHS & Halogen Free compliant.
Operating Temperature: 0°C to +70°C.
Storage Temperature: -25°C to +85°C.

Electrical Specifications @ 25°C

Parameter	Value
Turns Ratio (±3%)	TX: 1CT:1CT, RX: 1CT:1CT
OCL (Open Circuit Inductance)	350 µH Min (@ 100KHz, 0.1V)
Leakage Inductance (L.L.)	0.5 µH Max
Winding Capacitance (Cw/w)	28 pF Max
DC Resistance (DCR)	0.9 Ω Max
Hipot Test (Isolation)	1500 Vrms
Insertion Loss (1-100MHz)	-1.1 dB Max
Return Loss (dB Min)	-16 (1-30MHz), -12 (30-60MHz), -10 (60-100MHz)
Crosstalk (dB Min)	-40 (1-30MHz), -35 (30-60MHz), -30 (60-100MHz)
Common Mode Rejection (DCMR, dB Min)	-30 (1-50MHz), -20 (50-150MHz)

NS0013B LF = LP41604ANL

Trader Part Number

NS0013B LF Bothhand

Price Break	Unit Price	Extended Price
1-5	Free	Free
10-50	1.0	>10
100-500	0.65	>65
1,000-2,500	0.45	>450
5,000	0.35	>1750
10,000	Negotiable	Negotiable
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Manufacturer

LINK-PP

Made In China

LP41604ANL # LINK-PP

Documents

Datasheet

Description

Gigabit Magnetics

Lead Free Status / RoHS Status

Lead-free / RoHS Compliant

Quantity Available

2,000 PCS / Or 5 weeks

LINK-PP Made In China, Factory Mass Production List:

NS0013B LF	74990112121	13F-64YGD2PLNW2NL	HFJ11-1G02E-L12V3RL
99751813-01	74990112121	XFATM2GA-CLGY1-2MS	XFATM6CB-CLYG1-4MS
JX0011D21BNL	J00-0045NL	MTJ-88TX1-FSZ-PG-D1LH-M7	MIC24013-5104T-LF3
RJLD260TC1	LP41604ANL	HFJ11-E2450E-L12RL	NS0013B LF
RJLD-260TC1	J1B1211CFD	XFATM2E-Clxu1-4MS	HFJ11-1G02E-L12V3RL
NS0013B LF	6605814-2	MIC24013-5104T-LF3	LP41604ANL
JXR0-0015NL	RJLBC-060TC1	HFJ11-1G02E-L12V3RL	XFO656P-CLxu1-4MS
13F-64HND2NL	HY911105AE	NS0013B LF	24F-2011EGYD2SNWXNL
HFJ11-E2450E-RL	LP41604ANL	HFJ11-E2450E-L11RL	NS0013B LF
SJTAB-40LB02-L	RJLB-001TC1	13F-64GYDPNS2NL	XFAMT6SA-CLGY1-4MS
TG111-HPE3NZRL	NS0013B LF	HFJ11-1G02E-L12V3RL	24G-66JGYDPLZ2NL
74990112121	74990112121	TG111-HPE3NZRL	HFJ11-1G02E-L12V3RL
