Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: SS-74301-002
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Midcom PN: |
SS-74301-002 |
Made In China: |
SM-LPJE681BENL |
Port: |
1,2,4,8 Available |
Mounting: |
Vertical Top Entry |
Family: |
Rj45 PCB Jack |
Hipot: |
1500V |
Midcom PN: |
SS-74301-002 |
Made In China: |
SM-LPJE681BENL |
Port: |
1,2,4,8 Available |
Mounting: |
Vertical Top Entry |
Family: |
Rj45 PCB Jack |
Hipot: |
1500V |
|
Bel Stewart SS-74301-002 |
||||||||||||||||||||||||||||||||
|
Designed Part Number |
SS-74301-002 |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJE681BENL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |

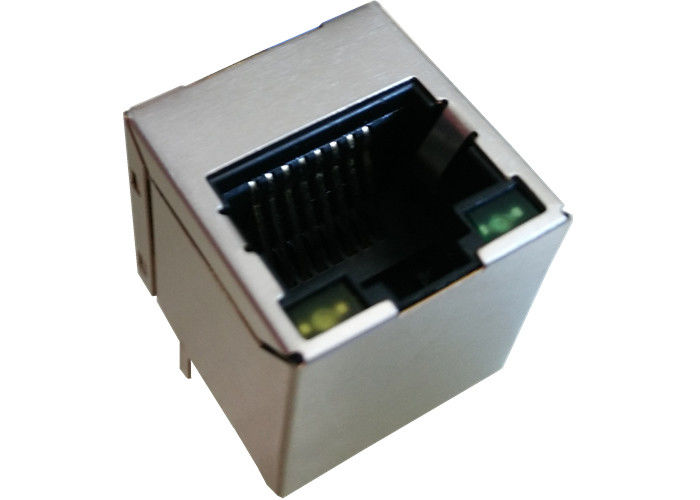

Single Port Top Entry Rj45 |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
| SS-74301-007 | SS-74301-001 | SS-74301-005 | SS-74301-003 |
|---|
SS-74301-002 Electrical Specifications @25℃
1.OCL: 350uH MIN
@100KHz,0.1Vrms,8mADC Bias
2.Turns Ratio:
TX=1CT∶1CT RX=1CT∶1CT
3.Insertion Loss:
0.1-100MHz:-1.1dB MAX
4.Return Loss(dB TYP):
30MHz:-20 60MHz:-14
80MHz:-11.5
5.Crosstalk(dB TYP):
30MHz:-45 60MHz:-40
100MHz:-35
6.DCMR(dB TYP):
30MHz:-42 50MHz:-37
100MHz:-33
7.Hipot: 1500Vrms MIN
8.Operating Temperature: -40℃～85℃.
