Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HX5014NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
HX5014NL |
Made In China: |
SM-LP5014ANL |
Family: |
Gigabyte Transformer |
Port: |
Dual SMT |
Pins: |
48Pins |
Samples: |
Free Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
HX5014NL |
Made In China: |
SM-LP5014ANL |
Family: |
Gigabyte Transformer |
Port: |
Dual SMT |
Pins: |
48Pins |
Samples: |
Free Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
|

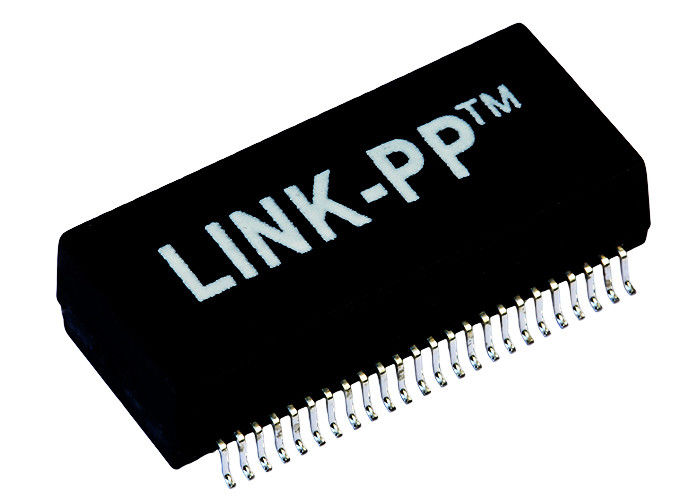

HX5014NL Pulse
|
||||||||||||||||||||||||||||||||
|
Trader Part Number
|
HX5014NL
|
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China
|
SM-LP5014ANL
|
|||||||||||||||||||||||||||||||
|
Manufacturer
|
LINK-PP China
|
|||||||||||||||||||||||||||||||
|
Description
|
Gigabit Transformer Modules
|
|||||||||||||||||||||||||||||||
|
Documents Available
|
PDF/3D/Step/IGS/Price/Cross
|
|||||||||||||||||||||||||||||||
|
Quantity Available
|
2,000 PCS or 4 weeks
|
|||||||||||||||||||||||||||||||
Detailed Information:
| LINK-PP LP5014ANL 100% CROSS PULSE HX5014ANL | |
| LINK-PP Part Number | LP5014ANL |
| Specification | HX5014ANL |
| Speed | 1000BASE-T |
| Number of Ports | DUAL |
| Application - LAN | ETHERNET (NoN PoE) |
| Package | SMD |
| Temperature | -40℃ TO +85℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 8 |
| Package Height (Inches) | 0.276 |
| Package Height (mm) | 7.00 |
| Package Length (Inches) | 1.102 |
| Package Length (mm) | 28.00 |
| Package Width (Inches) | 0.638 |
| Package Width (mm) | 16.20 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
