Top Entry Rj45 JD2-0011NL Vertical Jack Magnetics 10/100Base-T Shield LPJD0013DNL

Name: Top Entry Rj45 JD2-0011NL Vertical Jack Magnetics 10/100Base-T Shield LPJD0013DNL
Brand: LINK-PP
SKU: JD2-0011NL
Price: 0.09 USD
Availability: InStock
Rating: 4.8 (100 reviews)

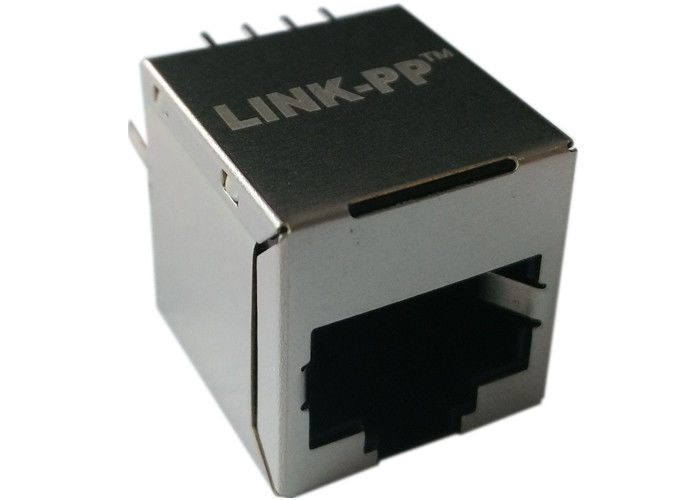

Large Image : Top Entry Rj45 JD2-0011NL Vertical Jack Magnetics 10/100Base-T Shield LPJD0013DNL

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	JD2-0011NL

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.09-$1.85
Packaging Details:	60PCS/Tray,22Trays=1320pcs/Carton=373030CM=10KG
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	3000000/Month

Contact Now

Detailed Product Description

Specification:	JD2-0011NL	Part No:	LPJD0013DNL
Category:	Rj45 Vertical Entry	Interface:	10/100Base-T
LED:	Flexible Designed	Samples:	Available
Highlight:	modular jacks rj45 , multi port connector

Top Entry Rj45 JD2-0011NL Vertical Jack Magnetics 10/100Base-T Shield LPJD0013DNL

Pulse JD2-0011NL

Specification Pulse

JD2-0011NL

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	Competitive
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China Cross Part

LPJD0013DNL

Manufacturer

LINK-PP China

Description

Rj45 Vertical Entry

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 4 weeks

Vertical Rj45 With Integrated Magnetics
LInk-PP LPJD0013DNL Corss Specification Pulse JD2-0011NL
LPJD0013DNL -..pdf

JD2-0011NL ELECTRICAL SPECFICATIONS @
1.Turns Ratio(± 2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,100mV,8mA bias current
3.Insertion Loss:
1-65MHz:-1.0dB Max
4.Return Loss(dB Min @100Ω± 15Ω):
1-10MHz:-20 30MHz:-16
60-80MHz:-12
5.Crosstalk(dB Min):
1-10MHz:-40 30-60MHz:-35
60-100MHz:-30
6.Common Mode Rejection(dB Min):
1-50MHz:-30 50-130MHz:-20
7.Isolation Voltage: 1500Vrms Min

Top Entry Rj45 JD2-0011NL Vertical Jack Magnetics 10/100Base-T Shield LPJD0013DNL 0
