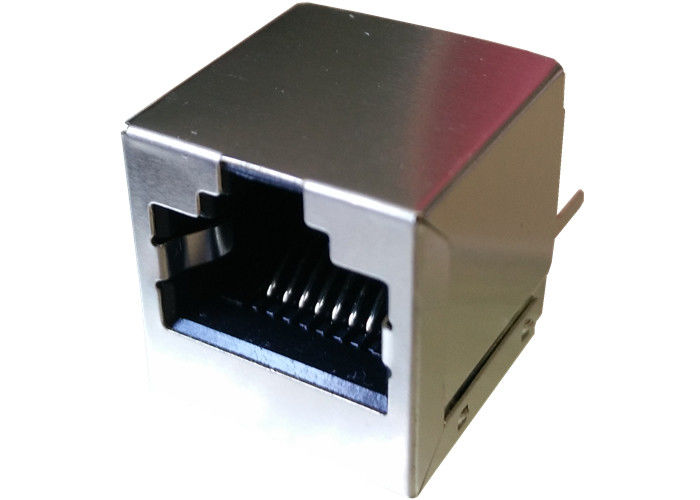

Vertical Rj45 Magjack ARJ11G-MBSE-MU2 Through Hole 10/100Base-T Connector

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: ARJ11G-MBSE-MU2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: Tray & Carton&Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

modular jacks rj45

,

multi port connector

Designe PN#:
ARJ11G-MBSE-MU2
Made In China:
SM-LPJD00XXDNL
Category:
Rj45 Vertical Entry
Interface:
10/100 Mbps
LED:
Does Not Contain LED
Samples:
Supportive
Designe PN#:
ARJ11G-MBSE-MU2
Made In China:
SM-LPJD00XXDNL
Category:
Rj45 Vertical Entry
Interface:
10/100 Mbps
LED:
Does Not Contain LED
Samples:
Supportive
Vertical Rj45 Magjack ARJ11G-MBSE-MU2 Through Hole 10/100Base-T Connector

Vertical Rj45 Magjack ARJ11G-MBSE-MU2 Through Hole 10/100Base-T Connector



ARJ11G-MBSE-MU2
Trader Part Number
ARJ11G-MBSE-MU2
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
Competitive
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LPJD00XXDNL
Manufacturer
LINK-PP China
Description
Rj45 Vertical Entry
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 3 weeks



ARJ11G-MBSE-MU2 ELECTRICAL SPECFICATIONS @
1.Turns Ratio(± 2%):
  TX=1CT:1CT      RX=1CT:1CT
2.OCL: 350uH Min
  @100KHz,100mV,8mA bias current
3.Insertion Loss:
  1-65MHz:-1.0dB Max
4.Return Loss(dB Min @100Ω± 15Ω):
  1-10MHz:-20      30MHz:-16
  60-80MHz:-12
5.Crosstalk(dB Min):
  1-10MHz:-40      30-60MHz:-35
  60-100MHz:-30
6.Common Mode Rejection(dB Min):
  1-50MHz:-30      50-130MHz:-20
7.Isolation Voltage: 1500Vrms Min
