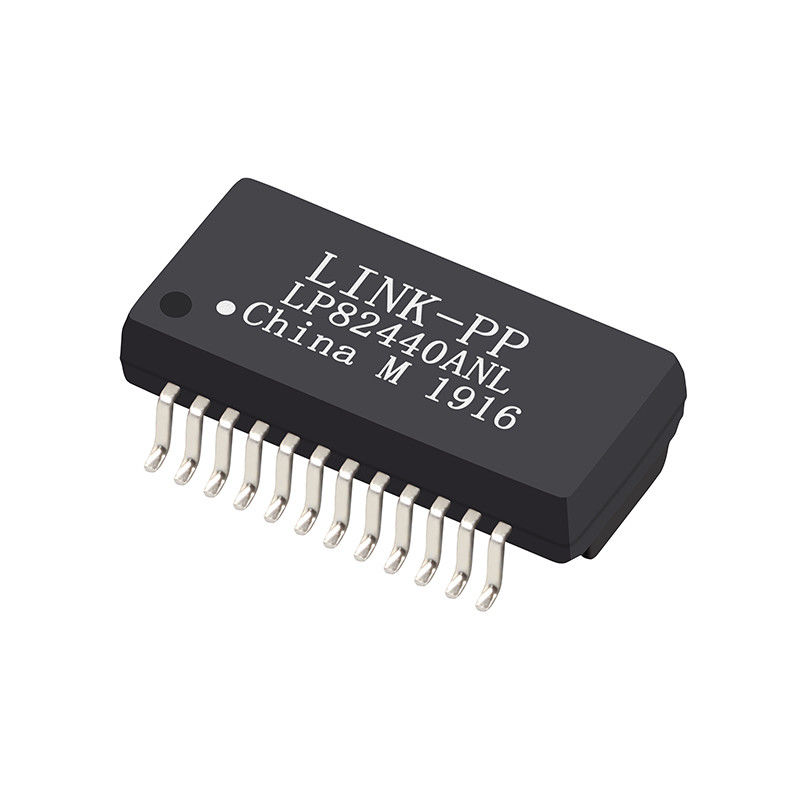

749020023A WE LAN Transformers LP82440ANL 24Pins Gigabit Magnetics

Name: 749020023A WE LAN Transformers LP82440ANL 24Pins Gigabit Magnetics
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 749020023A
Price: 1.07 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 749020023A

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.07-$2.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            10/100base-t Magnetics, Gigabit WE LAN Transformers, 749020023A


LINK-PP P/N:	LP82440ANL	Equivalent To:	749020023A WE LAN Transformers
Turns Ratio:	1CT : 1CT	Speed:	1000BASE-T
Hipot:	1500V	PoE:	Non-PoE
Mounting:	SMT

LINK-PP P/N:	LP82440ANL
Equivalent To:	749020023A WE LAN Transformers
Turns Ratio:	1CT : 1CT
Speed:	1000BASE-T
Hipot:	1500V
PoE:	Non-PoE
Mounting:	SMT

749020023A WE LAN Transformers LP82440ANL 24Pins Gigabit Magnetics

749020023A 10/100/1000 Base-T 1 Port SMT Transformer Introduction:

749020023A WE LAN Transformers LP82440ANL 24Pins Gigabit Magnetics 0

749020023A WE LAN Transformers LP82440ANL 24Pins Gigabit Magnetics 1

Electrical Specifications @ 25°C

1.Turn Ratio(TX/RX):
Pri:Sec=1CT:1CT ±5%P2.Inductance OCL:
350uH Min,100KHz/0.1V 8mA DC BLAS
3. Insertion Loss:
1-100MHz:-1.0dB Max
4. Return Loss:
1-30MHz:-18dB Min
40MHz:-14.4dB Min
50MHz:-13.1dB Min
60-80MHz:-12dB Min
5. Crosstalk:
30MHz:-45dB Min
60MHz:-40dB Min
100MHz:-35dB Min

749020023A WE LAN Transformers LP82440ANL 24Pins Gigabit Magnetics 2

6. DCMR:
30MHz:-40dB Min
60MHz:-35dB Min
100MHz:-30dB Min
7. Isolation Voltage: 1500Vrms
8. Operating Temperature: -40℃～+85℃

749020023A SMT Transformer Sechematic:

749020023A WE LAN Transformers LP82440ANL 24Pins Gigabit Magnetics 3

Applications of SMT WE LAN Transformers:

Suitable for industrial temperatures from –40 °C up to +125 °C
Compatible to Industrial Ethernet systems like EtherCAT or Profinet
Compliant with most ICs for Ethernet applications such as Microchip, Texas Instruments, Broadcom, Linear Technology
Hubs, Routers, Switches, IP cameras, IoT applications
