LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED

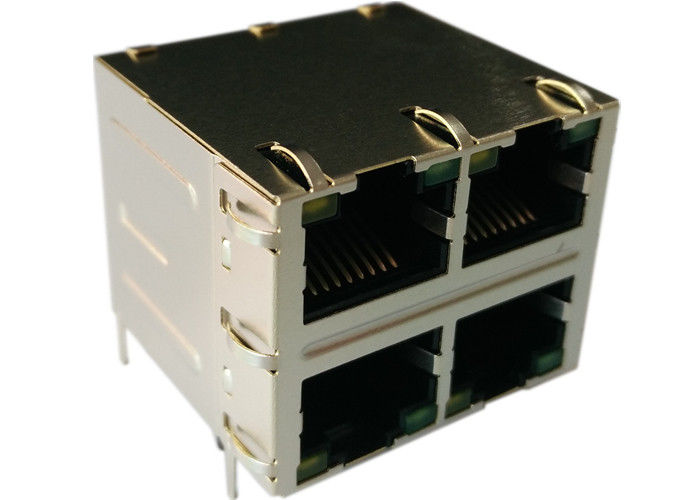

Large Image : LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	LINK-PP
Certification:	UL,RoHS,Reach,ISO
Model Number:	LPJ27434AGNL

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/60K
Price:	$0.11-$24
Packaging Details:	Tray
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	180K/Month

Contact Now

Detailed Product Description

Part No:	LPJ27434AGNL	Specification:	LPJ27434 Series
Ethernet:	4x10/100mbps	Mounting:	Thru-hole
Termination:	Solder	Samples:	Available
High Light:	stacked rj45 connectors , rj45 usb connector combo

LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED

4x Magnetic Rj45 Fast Ethernet
LPJ27434AGNL # LINK-PP
R/A Shield Connector
6u,15,30u,50u Gold Plating
2x2 Port Ethernet Port

Electrical Specifications @25℃

2.Turns Ratio:
TX = 1CT∶1CT
RX = 1CT∶1CT

3.Insertion Loss:
0.1～100MHz:-1.0dB Max
4.Return Loss(dB Min):
1～30MHz:-18 30～60MHz:-16
60～100MHz:-12
5.Crosstalk(dB Typ):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.CMR(dB Typ):
1～50MHz:-30 50～150MHz:-20
8.Hi-Pot: 1500Vrms @60Hz
9.Operating Temperature: -40℃～+85℃.

LINK-PP 2x2 Magjack Rj45 Series Available Part
LPJ27434AWNL	LPJ27434AFNL	LPJ27434CNL
LPJ27434AWNLDJE	LPJ27434DHL	LPJ27434AGNL
LPJ27434BGNL	LPJ27434BFNL	LPJ27434BWNL
