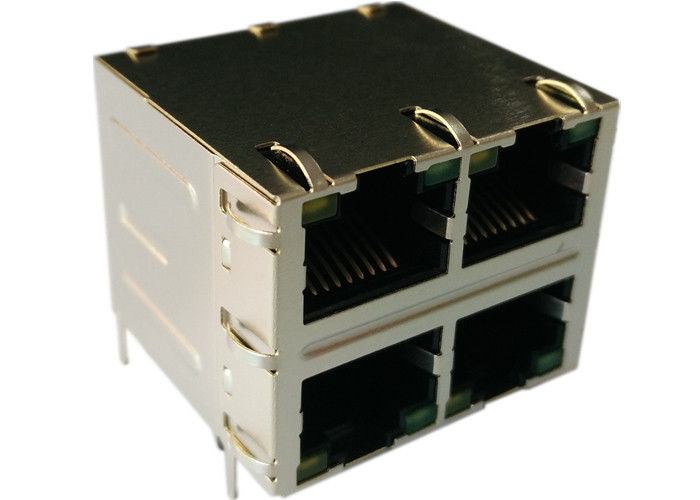

LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED

Name: LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LPJ27434AGNL
Price: 11.11 USD
Availability: InStock

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LPJ27434AGNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    stacked rj45 connectors, rj45 usb connector combo


Part No:	LPJ27434AGNL	Specification:	LPJ27434 Series
Ethernet:	4x10/100mbps	Mounting:	Thru-hole
Termination:	Solder	Samples:	Available

Part No:	LPJ27434AGNL
Specification:	LPJ27434 Series
Ethernet:	4x10/100mbps
Mounting:	Thru-hole
Termination:	Solder
Samples:	Available

LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED

LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED

4x Magnetic Rj45 Fast Ethernet
LPJ27434AGNL # LINK-PP
R/A Shield Connector
6u,15,30u,50u Gold Plating
2x2 Port Ethernet Port

Electrical Specifications @25℃

2.Turns Ratio:
TX = 1CT∶1CT
RX = 1CT∶1CT

3.Insertion Loss:
0.1～100MHz:-1.0dB Max
4.Return Loss(dB Min):
1～30MHz:-18 30～60MHz:-16
60～100MHz:-12
5.Crosstalk(dB Typ):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.CMR(dB Typ):
1～50MHz:-30 50～150MHz:-20
8.Hi-Pot: 1500Vrms @60Hz
9.Operating Temperature: -40℃～+85℃.

LINK-PP 2x2 Magjack Rj45 Series Available Part
LPJ27434AWNL	LPJ27434AFNL	LPJ27434CNL
LPJ27434AWNLDJE	LPJ27434DHL	LPJ27434AGNL
LPJ27434BGNL	LPJ27434BFNL	LPJ27434BWNL
