LPJ0012HDNL Magnetic 1x R-j45 , 8P8C , Shield Right Angle W/LED

Large Image : LPJ0012HDNL Magnetic 1x R-j45 , 8P8C , Shield Right Angle W/LED

Product Details:

Place of Origin:	China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	LPJ0012HDNL

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000
Price:	Supportive
Packaging Details:	50pcs/tray,1200pcs/carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	4600K.PCS/Month

Contact Now

Detailed Product Description

Part No:	LPJ0012HDNL	Munafactuer:	LINK-PP
Ethernet:	1x10/100Mbps	Indicator:	LED Optional
Mounting:	R/A	Samples:	Available Free
High Light:	rj45 with magnetics , rj45 magnetic jack

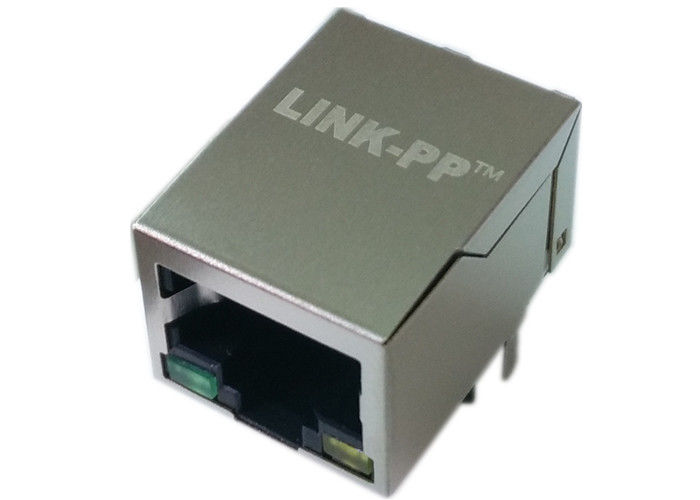

LPJ0012HDNL Magnetic 1x R-j45 , 8P8C , Shield Right Angle W/LED

1x 10/100 Mbps RJ45 Switching Ports
LPJ0012HDNL / LPJ4012HDNL
IEEE 802.3 10/100BASE-T
Rj45 Right Angle PCB Connector
LPJ0012HDNL : 0℃～70℃
LPJ4012HDNL : -40℃～85℃

Electrical Specifications @ 25℃
1.Turns Ratio(%%P2%):
TX=1CT:1CT RX=1CT:1CT
2.INDUCTANCE(@100KHz,100mV,8mA DC BIAS):
J1-J2;J3-J6;J4-J5;J7-J8: 350uH min
3.Insertion Loss:
1～100MHz:-1.0dB Max
4.Return Loss(dB Min.load 100Ω):
1～30MHz:-18 30～60MHz:-16
60～80MHz:-12 80～100MHz:-10
5.Crosstalk(dB Min):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.Common Mode Rejection(dB Min):
1～50MHz:-40 50～150MHz:-30
7.Isolation Voltage: 1500Vrms
8.Operating Temperature Range: 0℃～70℃.
