Name: 2x4 Vertical Mounting Stacked 8P8C RJ45 Jack 180 Degree THT Solder
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LINK-PP
Price: 0.09 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LINK-PP

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 20PCS /Tray,20Tray=400PCS Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000K/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Stacked RJ45 Connectors, Multi Port RJ45 Jack, RJ45 2x4


Type:	Vertical RJ45 Connectors	Orientation:	Top Entry
Port:	2x4 Ports	Ethernet:	Cat5/5e
Gender:	Female	Free Samples:	Available

Type:	Vertical RJ45 Connectors
Orientation:	Top Entry
Port:	2x4 Ports
Ethernet:	Cat5/5e
Gender:	Female
Free Samples:	Available

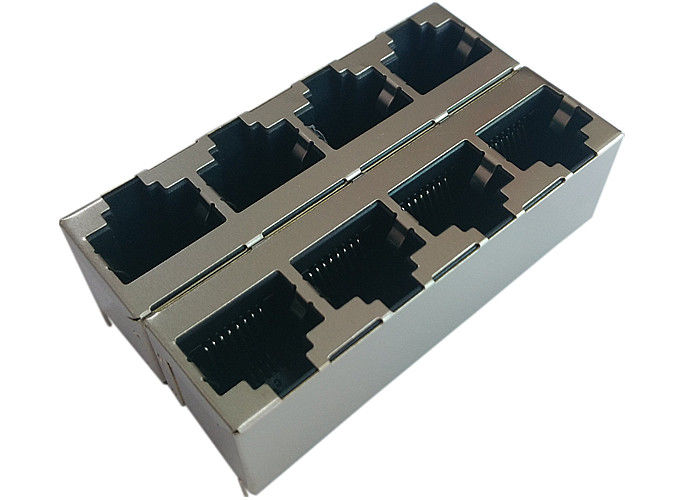

2x4 Vertical Mounting Stacked 8P8C RJ45 Jack 180 Degree THT Solder

Stacked 2x4 Vertical RJ45 Jack Overview

NOTES

● MATERIAL:

Housing: Glass-filled polyester UL94V-0
Contact (Round pin Ø0.46 mm): Phosphor bronze with gold plating over nickel
Shield: 0.20 mm thickness copper alloy with nickel plating

● ELECTRICAL:

Voltage rating: 125V AC
Current rating: 1.5 AMP
Contact resistance: 30 milliohms max
Insulation resistance: 500 megohms min @ 500V DC
Dielectric withstand voltage: 1000V AC RMS 50Hz or 60Hz, 1 min
Gold plating: (Gold Flash; 1.5; 3; 6; 15; 30; 50) µ" inch

● MECHANICAL:

Insertion force: 2.2 kg max
Retention strength: 7.7 kg between the jack and the plug
Durability: 750 cycles min

● ENVIRONMENTAL:

Storage: −40°C ~ +85°C
Operation: −40°C ~ +85°C
Wave peak temperature: 260°C, 5 sec

RJ45 2x4 Applications

Ethernet Switches & Hubs
Routers & Gateways
Network Interface Cards (NICs)
Industrial and Telecom Equipment
IoT and Embedded Networking Devices
