2x4 Vertical Mounting Stacked Jack 180 Degree , 8x Rj45 Top Entry Straight 8P8C

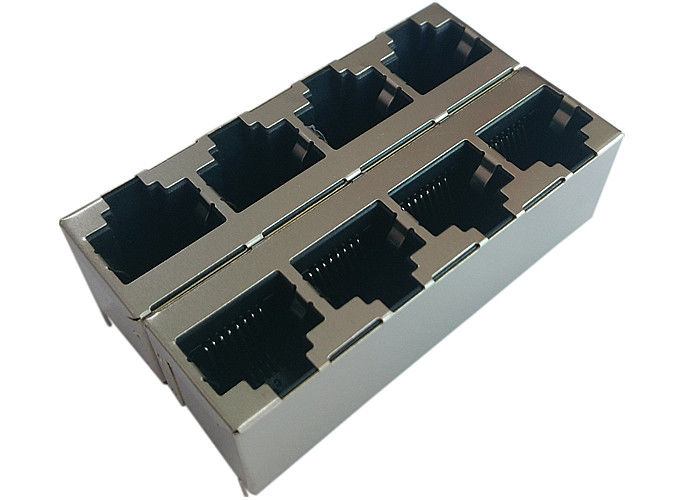

Large Image : 2x4 Vertical Mounting Stacked Jack 180 Degree , 8x Rj45 Top Entry Straight 8P8C

Product Details:

Place of Origin:	China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	LPJEF5240DNL

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.09-$1.85
Packaging Details:	20PCS /Tray,20Tray=400PCS Carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	3000K/month

Contact Now

Detailed Product Description

Specification:	LPJEF5240DNL	Part No:	LPJEF5240DNL
Port:	2x4 Port Ethernet	Ethernet:	Cat5/5e
Gender:	Female,Receptacle	Samples:	Available
High Light:	stacked rj45 connectors , multi port connector

2x4 Vertical Mounting Stacked Jack 180 Degree , 8x Rj45 Top Entry Straight 8P8C

2X4 Port RJ45 Jack 8P8C
Quad Port RJ45 JACK
4x2 Rj45 PCB Connector Rj45
Vertical Mount (180 degree)
PCB Mount Shield
Vertical RJ45 Jack Without Magnetics Without LED Model

2x4 Vertical Mounting Stacked Jack 180 Degree , 8x Rj45 Top Entry Straight 8P8C 1

2x4 Vertical Mounting Stacked Jack 180 Degree , 8x Rj45 Top Entry Straight 8P8C 2

PCB JACK Specification
1.Insulation Resistance:500MΩMIN @ 500 VDC
2.Withstanding Voltage:AC1000V 50Hz or
60Hz 1min.
3.Durability:600 Mating Circles MIN.
4.Gold Plating:
(Gold Flash;1.5;3;6;15;30;50)u inch

ENVIRONMENTALl
1.Storage Temperature: -40℃ To +85℃
2.Opertion Temperature: -40℃ To +85℃
3.Wave Soldering Temperature:
255℃～265℃(5～10Seconds)
4.RoHs Compliant.

2x4 Vertical Mounting Stacked Jack 180 Degree , 8x Rj45 Top Entry Straight 8P8C 3
