LPJD4012BENL , Vertical RJ45 Jack , 1CT:1CT, 8P8C 10/100Mbps, Shield LED G-Y

Name: LPJD4012BENL , Vertical RJ45 Jack , 1CT:1CT, 8P8C 10/100Mbps, Shield LED G-Y
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LPJD4012BENL
Price: 0.09 USD
Availability: InStock

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJD4012BENL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 60pcs/Tray22 trays/carton,Size37*30*30 cm,10KGS (1320pcs)

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    100Base-T Vertical RJ45 Jack, 8P8C RJ45 Vertical


Type:	Vertical RJ45 Connector With Integrated Magnetic	Latch:	UP
Ethernet:	10/100Base-T Ethernet PHY	LED Indicator:	Green-Yellow
Orientation:	180 Degree	Mounting Type:	Through Hole

Type:	Vertical RJ45 Connector With Integrated Magnetic
Latch:	UP
Ethernet:	10/100Base-T Ethernet PHY
LED Indicator:	Green-Yellow
Orientation:	180 Degree
Mounting Type:	Through Hole

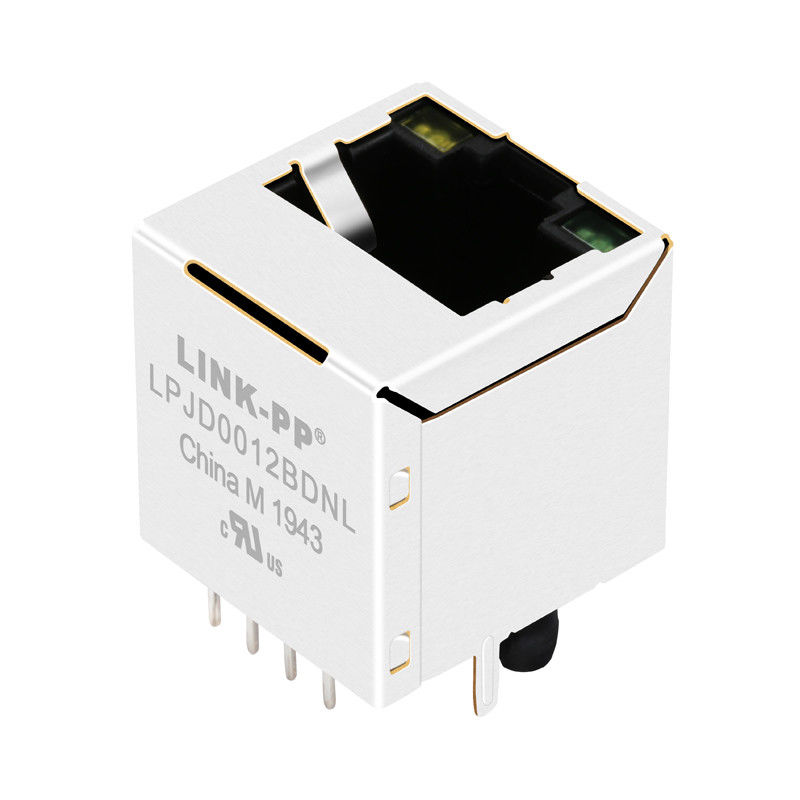

LPJD4012BENL , Vertical RJ45 Jack , 1CT:1CT, 8P8C 10/100Mbps, Shield LED G-Y

LPJD4012BENL , Vertical RJ45 Jack , 1CT:1CT, 8P8C 10/100Mbps, Shield LED G-Y

LPJD4012BENL
Top Entry Rj-45 Model
Rj45 With Integrated Magnetic
1x10/100Mbps Vertical Rj45 Connectors
8P8C Straight Rj45 Shield With LED

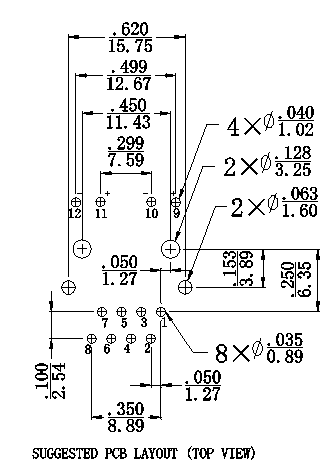

LPJD4012BENL.pdf

TEST NOTES(25±5℃)
1.TR:(100KHz,0.1V);
TX=1CT:1CT

RX=1CT:1CT

2.LX:(100KHz,100mV,8mA,DC Bias)
PINS:(P1-P3),(P4-P6)=350uH MIN
3. Transmitter filter & Receiver Filter Type:
Balance low pass 100Ω impedance
4. HIPOT:
Input(P1-P3)TO Output(J1-J2):1500VAC 60sec
Input(P4-P6)TO Output(J3-J6):1500VAC 60sec
5. INSERTION LOSS:
-1.0dB MAX @ 1.0MHz TO 100MHz
6. RETURN LOSS:
-18dB MIN @ 1.0MHz TO 30MHz
-16dB MIN @ 30MHz TO 60MHz
-12dB MIN @ 60MHz TO 80MHz
7. CROSS TALK:
-30dB MIN @1.0MHz TO 100MHz
8. COMMON MODE REJECTION:
-30dB MIN @1.0MHz TO 100MHz
9. OPERATING TEMPERATURE: -40℃～+85℃.
