LPJD5153BHNL Vertical RJ45 Jack, Power Over Fast Ethernet 10/100Mbps

China LPJD5153BHNL Vertical RJ45 Jack, Power Over Fast Ethernet 10/100Mbps supplier
LPJD5153BHNL Vertical RJ45 Jack, Power Over Fast Ethernet 10/100Mbps supplier LPJD5153BHNL Vertical RJ45 Jack, Power Over Fast Ethernet 10/100Mbps supplier

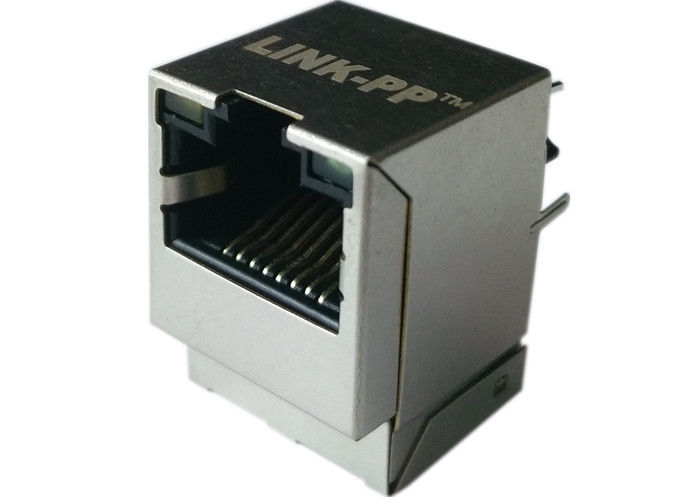

Large Image :  LPJD5153BHNL Vertical RJ45 Jack, Power Over Fast Ethernet 10/100Mbps

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: LPJD5153BHNL

Payment & Shipping Terms:

Minimum Order Quantity: 200
Price: Supported & Discount
Packaging Details: 54PCS/Tray,24Trays=37*30*30CM=1296PCS=10KG/Carton
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: LPJD5153BHNL P.N: LPJD5153BHNL
Ethernet: 1x10/100 Mbps Power Ethernet Indicator: LED Flexible
Mounting: Thru-Hole Vertical Model Samples: Free

LPJD5153BHNL Vertical RJ45 Jack, Power Over Fast Ethernet 10/100Mbps



  • LPJD5153BHNL 10/100 Mbps Ethernet RJ-45 connector
  • IEEE 802.3af Power over Ethernet (PoE)
  • Vertical Mount (180 degree)
  • Power Over Ethernet Rj45 Connector Gigabit Lan Magnetic
Vertical Mount ,180 degree POE Rj45
Electrical Specifications @25℃
1.Turns Ratio(100KHz,0.1V):
PINS:(P1-P2):(J1-J2)=1:1 ± 3%
PINS:(P3-P6):(J3-J6)=1:1 ± 3%
2.OCL(100KHz,100mV,8mA,DC Bias):
PINS:(P1,P2),(P3,P6)=350uH Min
3.Insertion Loss:
0.3-100MHz:-1.0dB Max
4.Return Loss(dB Min):
1-30MHz:-20 30-60MHz:-15
60-80MHz:-10
5.Crosstalk:
1-100MHz:-30 dB Min
6.Common to Common Mode Rejection:
1-100MHz:-30dB Min
7.Hi-PoT: 1500Vrms/0.5mA/2sec Min
8.Operating Temperature Range:-40℃~+85℃.
LPJD5153BHNL Vertical RJ45 Jack, Power Over Fast Ethernet 10/100Mbps
LPJD5153BHNL Vertical RJ45 Jack, Power Over Fast Ethernet 10/100Mbps LPJD5153BHNL Vertical RJ45 Jack, Power Over Fast Ethernet 10/100Mbps
