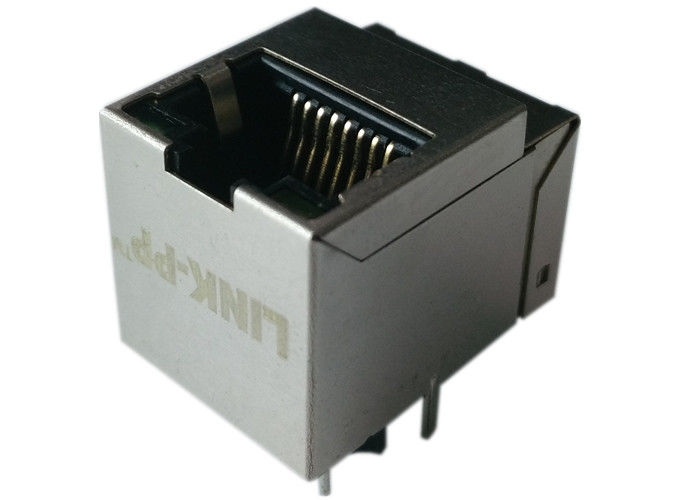

LPJD1011BENL Cross MIC24611-5104T-LF3 , Vertical RJ45 Jack , 1CT:1CT 10/100Mbps

Name: LPJD1011BENL Cross MIC24611-5104T-LF3 , Vertical RJ45 Jack , 1CT:1CT 10/100Mbps
Brand: LINK-PP
SKU: MIC24611-5104T-LF3
Price: 0.09 USD
Availability: InStock
Rating: 4.8 (125 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: MIC24611-5104T-LF3

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 54PCS/Tray,24Trays=37*30*30CM=1296PCS=10KG/Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, multi port connector


Specification:	MIC24611-5104T-LF3	Part No:	LPJD1011BENL
Ethernet:	10/100Base-T Ethernet PHY	Indicator:	LED Flexible
Mouting:	180 Degree	Samples:	Available

Specification:	MIC24611-5104T-LF3
Part No:	LPJD1011BENL
Ethernet:	10/100Base-T Ethernet PHY
Indicator:	LED Flexible
Mouting:	180 Degree
Samples:	Available

LPJD1011BENL Cross MIC24611-5104T-LF3 , Vertical RJ45 Jack , 1CT:1CT 10/100Mbps

LPJD1011BENL LINK-PP Rj45 Top Entry
Top Entry Rj-45 Model Cross MIC24611-5104T-LF3
Rj45 With Integrated Magnetic
1x10/100Mbps Vertical Rj45 Connectors

Electrical Specifications @25℃
1.OCL: 350uH Min
@100KHz,0.1V,8mADC BIAS
2.Turns Ratio(%%P2%):
TX = 1CT∶1CT RX = 1CT∶1CT
3.Insertion Loss:
0.1-100MHz:-1.1dB Max
4.Return Loss(dB Min):
0.5-30MHz:-18 40MHz:-15.5
50MHz:-13.6 60-80MHz:-12
5.Crosstalk(dB Typ):
0.1-100MHz:-40
6.Common Mode Rejection(dB Typ):
0.1-30MHz:-50 30-60MHz:-40
60-100MHz:-35
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: 0℃～70℃
