H5009FNL Gigabit Ethernet Transformer LP5015ANL Single Port 10/100/1000Mbps

China H5009FNL Gigabit Ethernet Transformer LP5015ANL Single Port 10/100/1000Mbps supplier
H5009FNL Gigabit Ethernet Transformer LP5015ANL Single Port 10/100/1000Mbps supplier H5009FNL Gigabit Ethernet Transformer LP5015ANL Single Port 10/100/1000Mbps supplier H5009FNL Gigabit Ethernet Transformer LP5015ANL Single Port 10/100/1000Mbps supplier

Large Image :  H5009FNL Gigabit Ethernet Transformer LP5015ANL Single Port 10/100/1000Mbps

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: H5009FNL

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: Paypal , T/T, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: H5009FNL Part No: LP5015ANL
Family: Gigabit Ethernet Transformer Mounting: SMD
Pins: 24 Pins Samples: Free Available
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

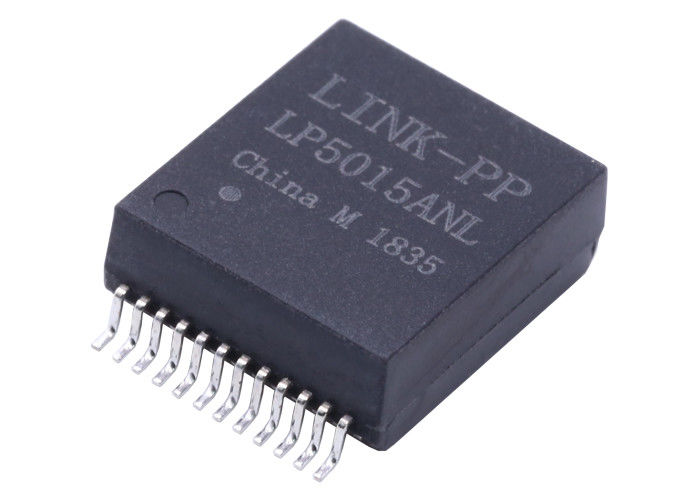

H5009FNL Gigabit Ethernet Transformer LP5015ANL Single Port 10/100/1000Mbps



  • LINK-PP LP5015ANL 10/100/1000Base-T Filter Magnetic
  • Cross H5009FNL Pulse Transformer
  • Gigabit Ethernet Transformer Connection  Single Port Transformer Module
  • 24Pins Surface Mounting



Single Port, 1000 BASE-T Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number LP5015ANL
Speed 1000BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature - 40 TO + 85
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Package Height (Inches) 0.225
Package Height (mm) 5.72
Package Length (Inches) 0.740
Package Length (mm) 18.80
Package Width (Inches) 0.537
Package Width (mm) 13.64
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



H5009FNL Gigabit Ethernet Transformer LP5015ANL Single Port 10/100/1000Mbps Electrical Specification @25℃
1.OCL(100KHz,0.1Vrms,8mA):350uH
2.Turns Ratio: 1CT:1CT
3.Insertion Loss:
1-100MHz:-1.0dB max
4.Return Loss(dB min):
1-40MHz:-18 60MHz:-14
80MHz:-12 100MHz:-10
5.Crosstalk(dB min):
30MHz:-43 60MHz:-37
100MHz:-33
6.CMR: 0.1-100MHz:-40dB typ
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: -40℃~+85℃.
