LP5012NL Cross XTFZ-M3076 Dual Port Gigabit Magnetics Module 48Pins SMD

China LP5012NL Cross XTFZ-M3076 Dual Port Gigabit Magnetics Module 48Pins SMD supplier

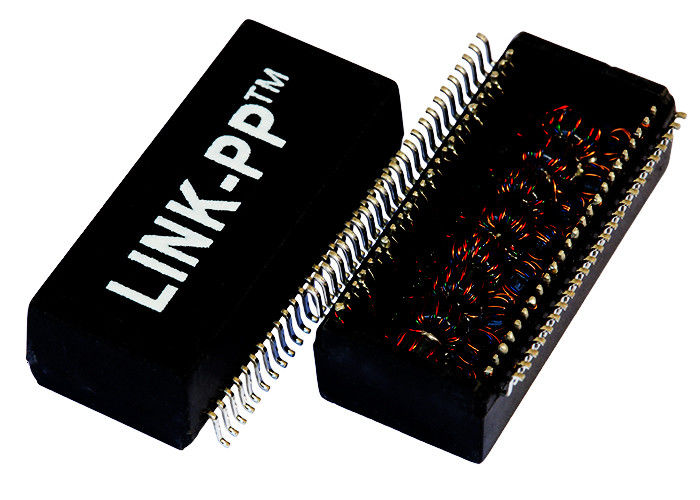

Large Image :  LP5012NL Cross XTFZ-M3076 Dual Port Gigabit Magnetics Module 48Pins SMD

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: XTFZ-M3076

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: Paypal , T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: XTFZ-M3076 Part No: LP5012NL
Family: Gigabit Ethernet Transformer Mounting: SMD
Pins: 48 Pins Samples: Free Available
Hi-pot: 1500Vrms OCL: 350uh Min
Temperature: 0 TO + 70℃ Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

LP5012NL Cross XTFZ-M3076 Dual Port Gigabit Magnetics Module 48Pins SMD

Detailed Information:

LINK-PP LP5012NL 100% CROSS XTFZ-M3076
LINK-PP Part Number LP5012NL
Specification XTFZ-M3076
Speed GIGABIT
Number of Ports DUAL
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature 0℃ TO +70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 24
Package Height (Inches) 0.276
Package Height (mm) 7.00
Package Length (Inches) 1.102
Package Length (mm) 28.00
Package Width (Inches) 0.606
Package Width (mm) 15.40
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
