Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TG1G-S202NV6
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
TG1G-S202NV6 |
Part No: |
LP5012NL |
Family: |
Gigabit Ethernet Transformer |
Mounting: |
SMD |
Pins: |
48 Pins |
Samples: |
Free Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
TG1G-S202NV6 |
Part No: |
LP5012NL |
Family: |
Gigabit Ethernet Transformer |
Mounting: |
SMD |
Pins: |
48 Pins |
Samples: |
Free Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Detailed Information:

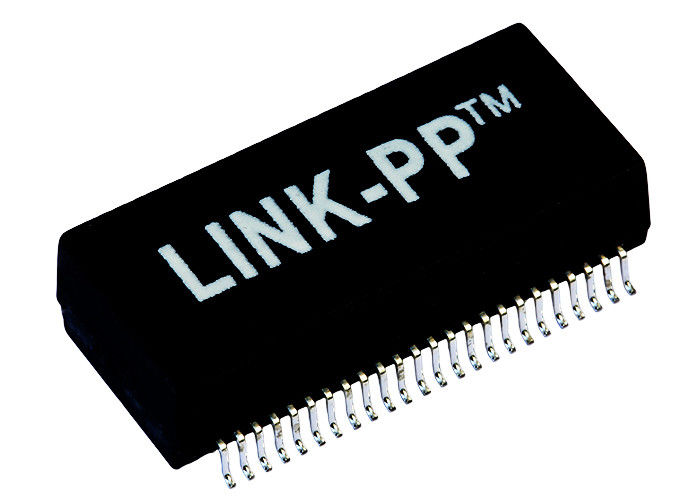

| LINK-PP LP5012NL 100% CROSS HALO TG1G-S202NV6 | |
| LINK-PP Part Number | LP5012NL |
| Halo Part Number | TG1G-S202NV6 |
| Speed | 1000BASE-T |
| Number of Ports | DUAL |
| Application - LAN | ETHERNET (NoN PoE) |
| Package | SMD |
| Temperature | 0℃ TO +70℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 24 |
| Package Height (Inches) | 0.276 |
| Package Height (mm) | 7.00 |
| Package Length (Inches) | 1.102 |
| Package Length (mm) | 28.00 |
| Package Width (Inches) | 0.606 |
| Package Width (mm) | 15.40 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
About LINK-PP:
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
