Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: XF-C03A1C01
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
XF-C03A1C01 |
Part No: |
LP1188NL |
Ethernet: |
1x10/100Mbps |
Mounting Type: |
Surface |
Pins: |
16 Pins |
Samples: |
Free Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
XF-C03A1C01 |
Part No: |
LP1188NL |
Ethernet: |
1x10/100Mbps |
Mounting Type: |
Surface |
Pins: |
16 Pins |
Samples: |
Free Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

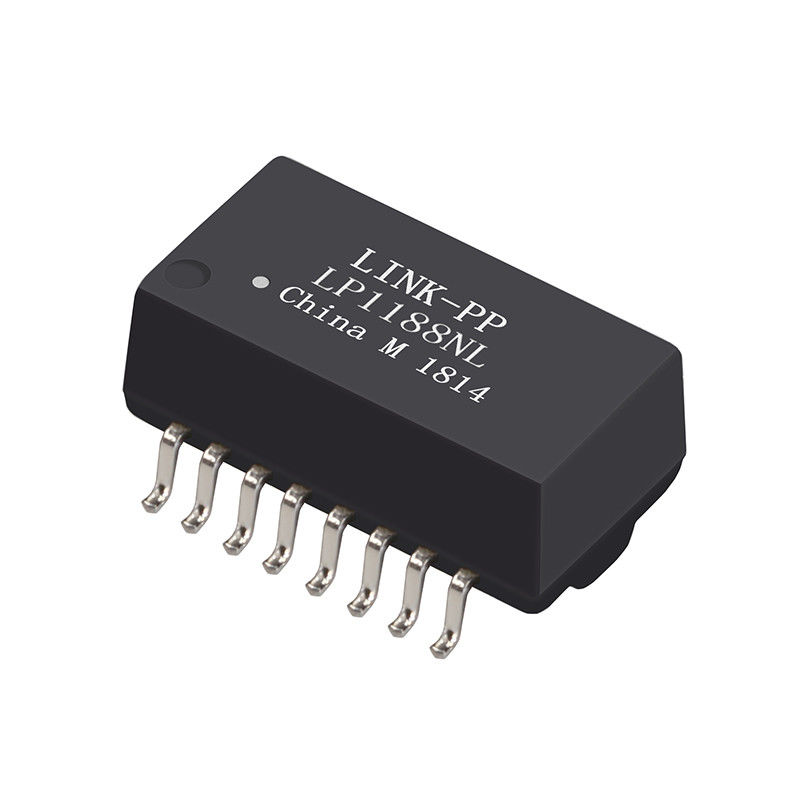

LINK-PP LP1188NL
Cross XF-C03A1C01 Magnetics
High isolation voltages to comply with international safety
Compliant with IEEE 802.3u and ANSI X3.263 standards
including 350uH OCL with 8mA bias.
All materials RoHS and UL compliant.
Bottom Open Type
| Electrical Specifications @25 1.OCL: 350uH MIN @100KHz,0.1Vrms,8mADC 2.Turns Ratio(±3%): TX=1CT∶1CT RX=1CT∶1CT 3.Insertion Loss: 0.1-100MHz:-1.1dB MAX 4.Return Loss(dB MIN @ 100Ω): 30MHz:-20 60MHz:-14 80MHz:-11.5 5.Crosstalk(dB MIN): 30MHz:-45 60MHz:-40 100MHz:-35 6.DCMR(dB MIN): 30MHz:-42 60MHz:-37 100MHz:-33 7.Hipot: 1500Vrms MIN 8.Operating Temperature: -40℃～+85℃. |
|
